SE109/3
GERMAN SPY TRANCEIVER

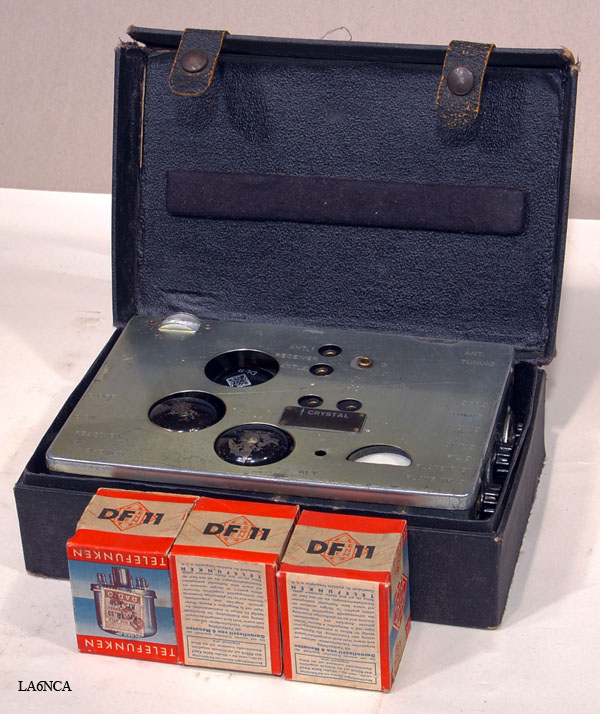

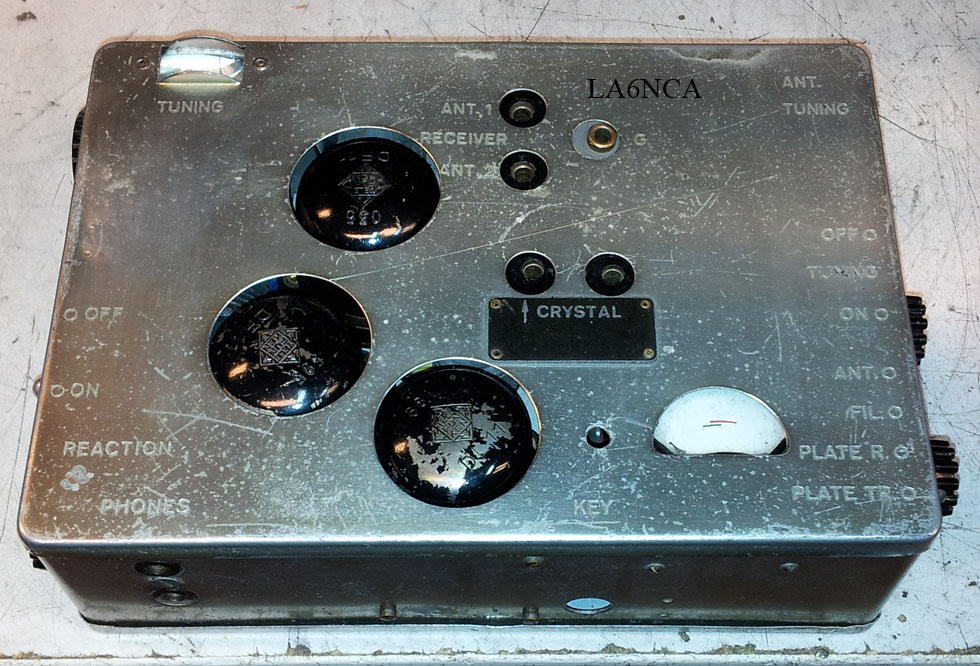

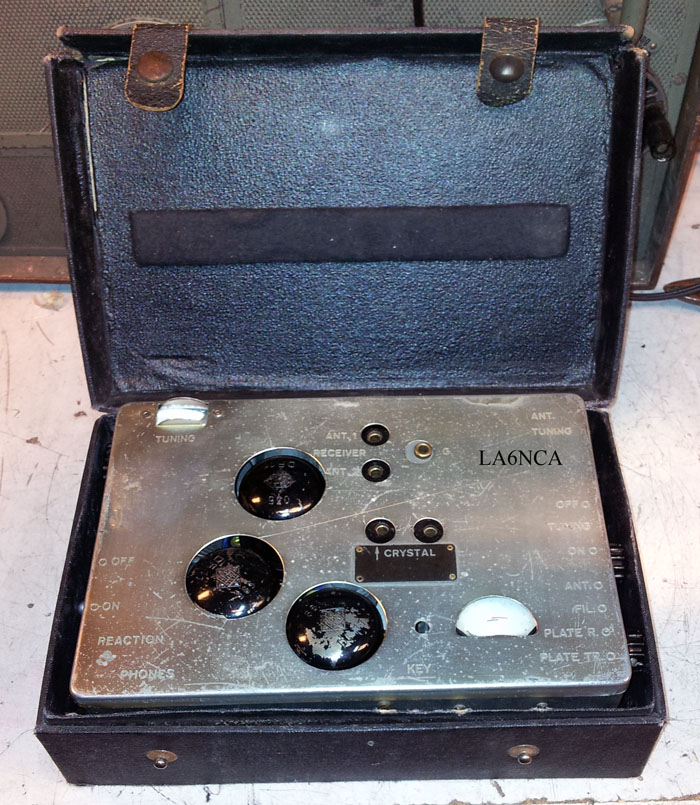

Cookie Box transceiver (Keksdose).
This is a battery operated spy transceiver.
The receiver on this travceiver is identical with receiver in SE108/10.
SE108/10 have separate receiver and transmitter.
Here are both receiver and transmitter mounted in the same box.
The tubes are replaced ril to Operates from batteries.
German spies used this transceiver for communication back to Germany.
All marking is in English. This is common for allt spy equipment.
It is powered by three different voltages.
1.4 volts to the filament.
90 volts to the receiver.
260 volts to the transmitter.

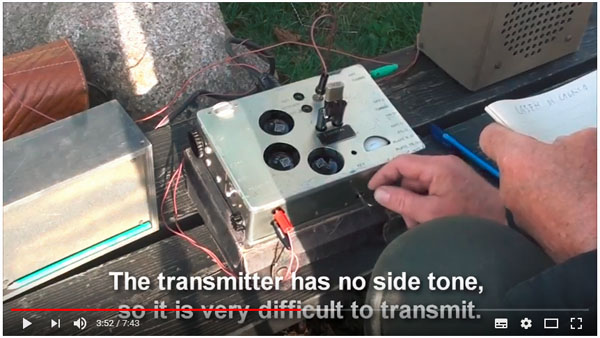

Film, A spy will send a secret message.



This is battery version of SE108/10
Receiver in the SE108/10 is converted to DF11 tubes.
It can therefore Operates from batteries.
The transmitter is also the same as SE108/10 but has the tube DLL22T.





Frequency range for this transceiver is from 3 MHz - 5.3 MHz.

00 -- 5310, 10 -- 5265, 20 -- 5000, 30 -- 4725,
40 -- 4480, 50 -- 4290, 60 -- 4110, 70 -- 3945,
80 -- 3816, 85 -- 3746, 90 -- 3681, 95 -- 3629,
100 - 3569, 105 - 3521, 110 - 3460, 120 - 3370,
130 - 3280, 140 - 3200, 150 - 3120, 160 - 3050,
170 - 2990, 180 - 2935,

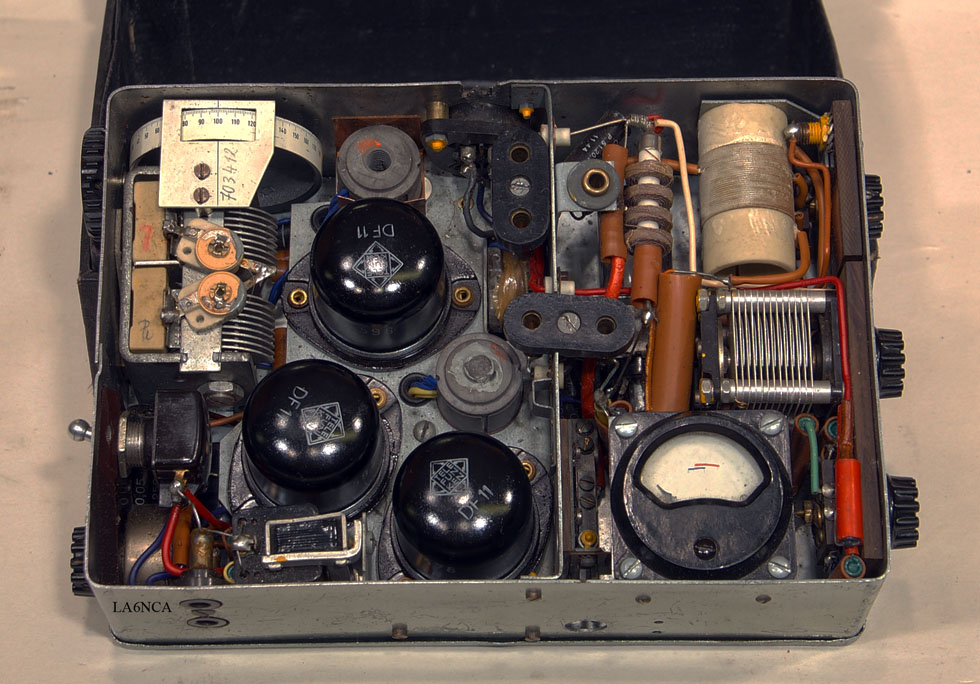

I had new tubes on my stock. I replaced all the tubes.

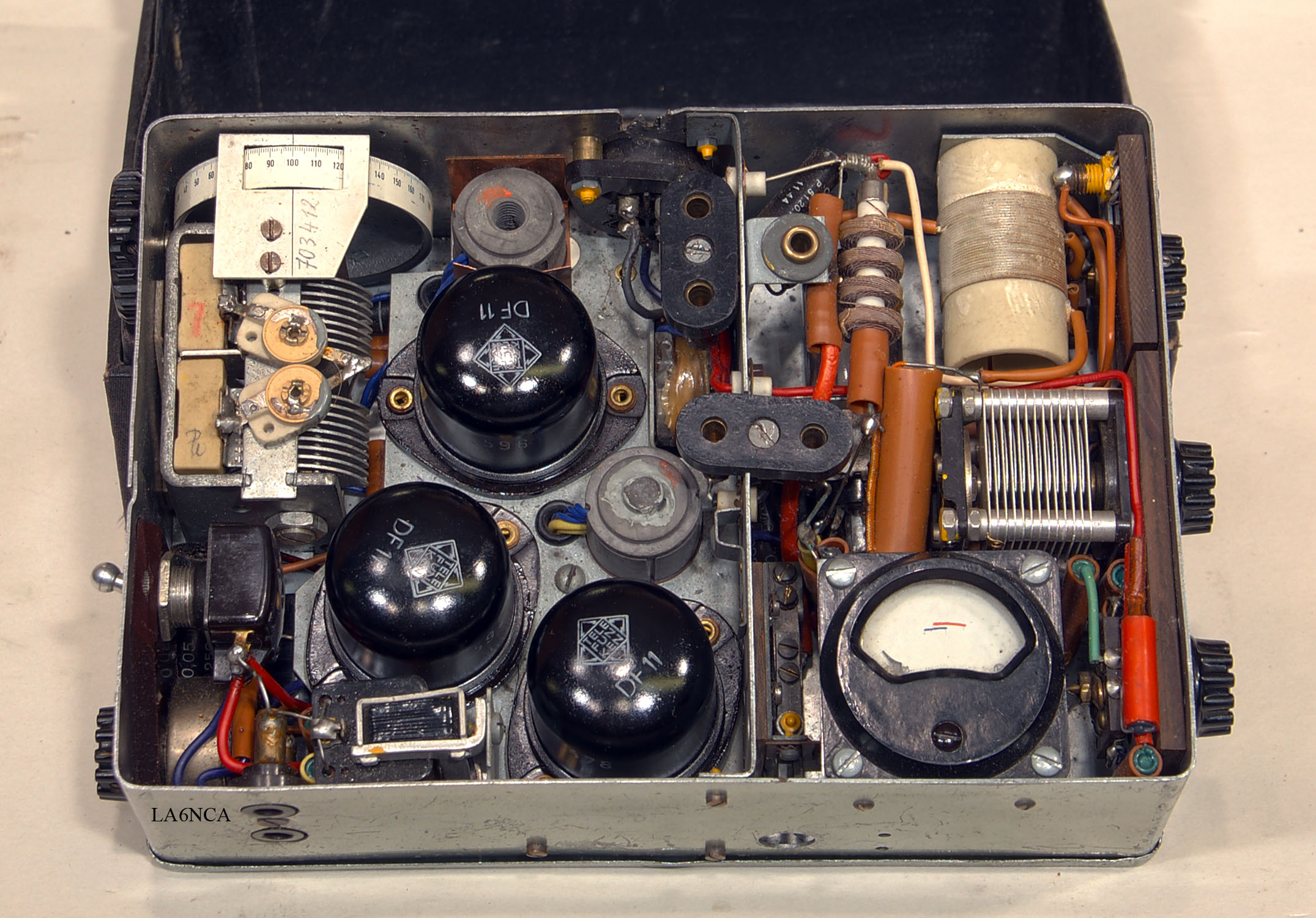

Transmitter tube is located under the coil and capacitor.
