LA6NCA RADIO PAGE
SE 108/10
Spy Transeiver



SE 108/10 Agent / Spy Transeiver

This radio consists of three separate units; Power, Receiver and Transmitter.
Each unit is mounted in a small tin box.
The radio was used by OKW Amt Ausland / Abwehr.





SE108/10
Receiver - Power - Transmitter





Each section is connected with special connectors used by Luftwaffe - headset (Brechkopplung).





All the marking on the transmitter and receiver is on English.

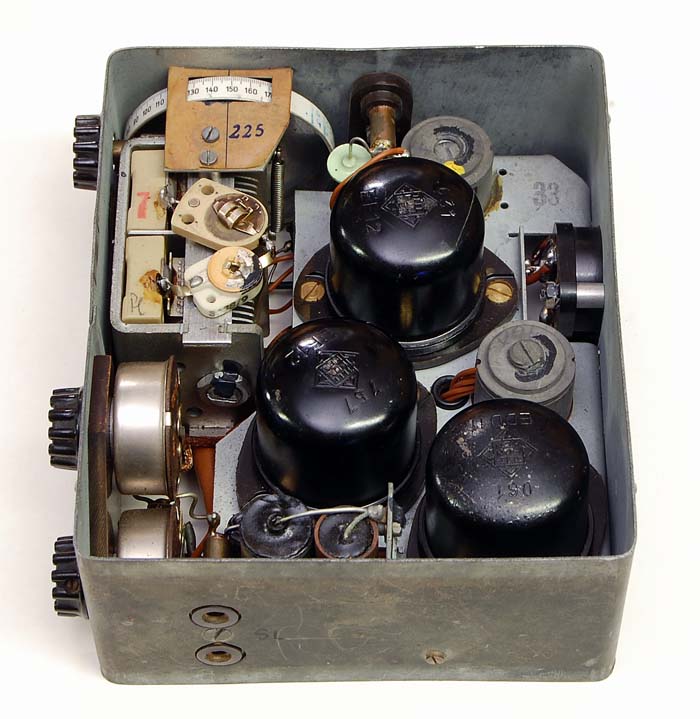

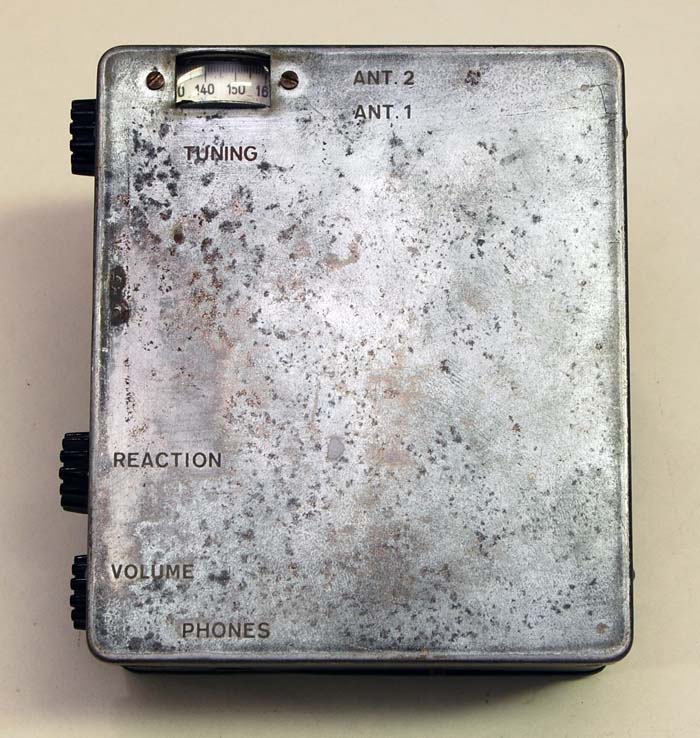

The receiver has three tubes. Two EF12 and one EDD12.

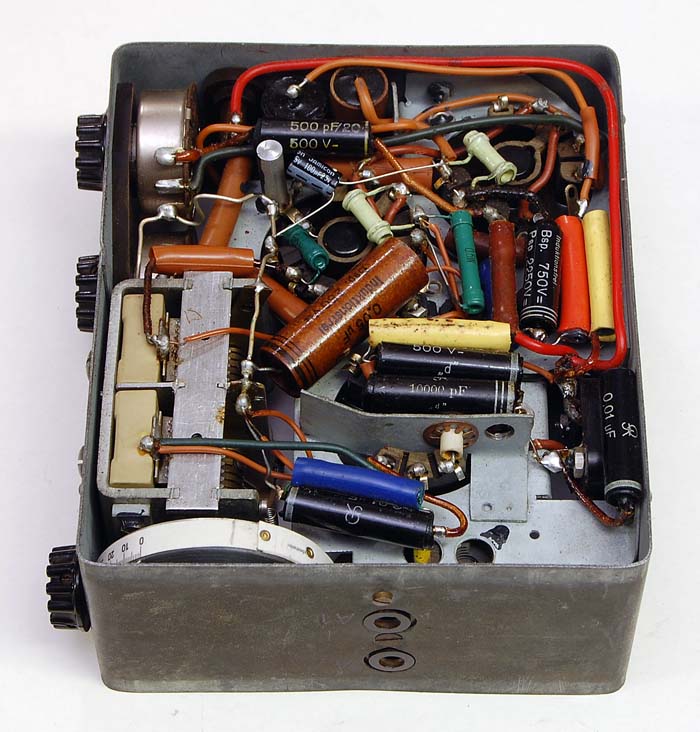

Receiver, bottom view.

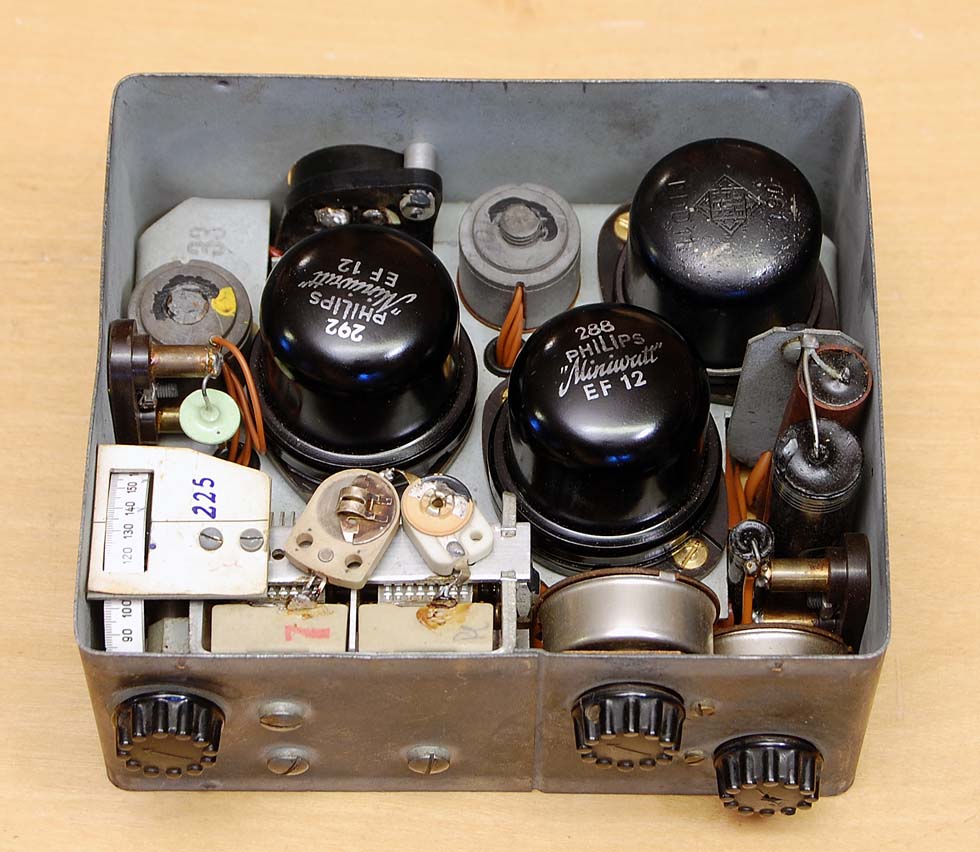

Here is the receiver with new tubes. The original tubes were OK when I found the right operating voltage.
I run the receiver on 6.3 Volt and 230 Volt DC.
The frequency range is 3.5 to 6.5 MHz.

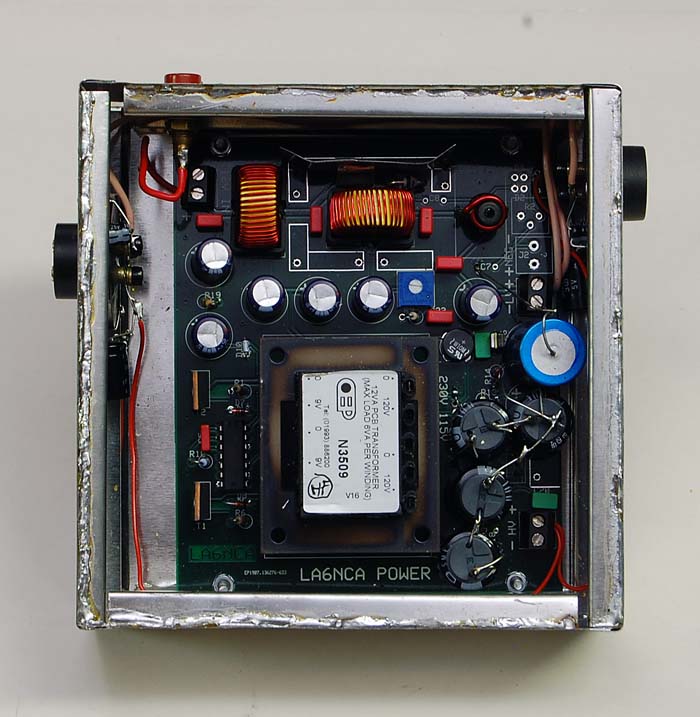

Here is my power for the SE108/10.


QSO with SM3AVQ

September 3, 2018 I had a connection with the spy transmitter to Sweden.
The distance was 682 km. The antenna was a 35 meter wire.
I was located in Sirevåg south of Stavanger and SM3AVQ was stationed in Gävle on the east coast of Sweden.
Fantastically good. He heard me very strongly. RST-579.

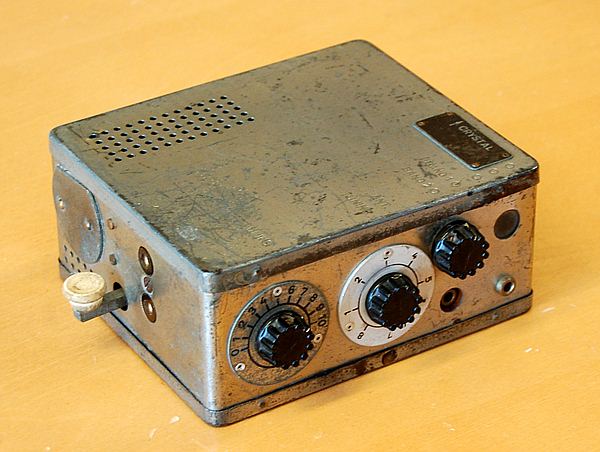

S 108/10 Agent / Spy Transmitter

This transmitter is a part of the complete radio station SE108/10.
This radio consists of 3 separate units; Power, Receiver and Transmitter.
Each unit is mounted in a small tin box.
The radio was used by OKW Amt Ausland / Abwehr.

Frequency range
Power output:
Power input:
Tube:
Size,
Weight:
2.3 – 12 MHz, in two ranges
10 Watt
55 Volt and 275 Volt
UBL21
6.5 x 12 x 14 cm
0.85 kg

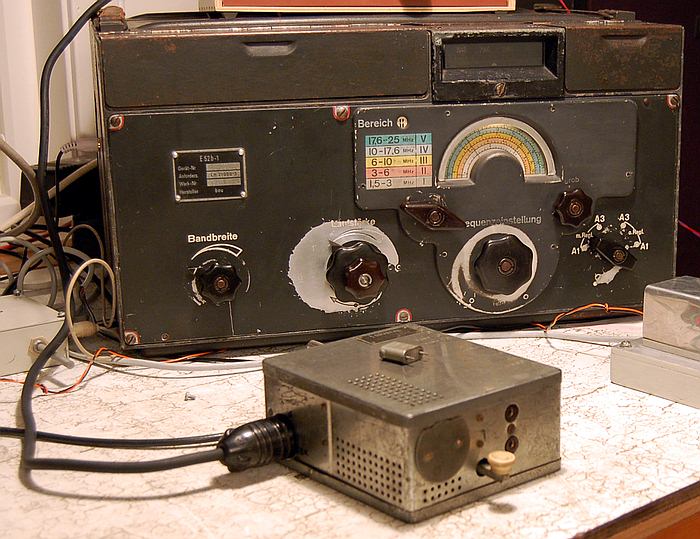

First test of the transmitter. Here is S108/10 used with the receiver Køln E52b.
The first QSO was with LA7JS on 3567 kHz, RST=599

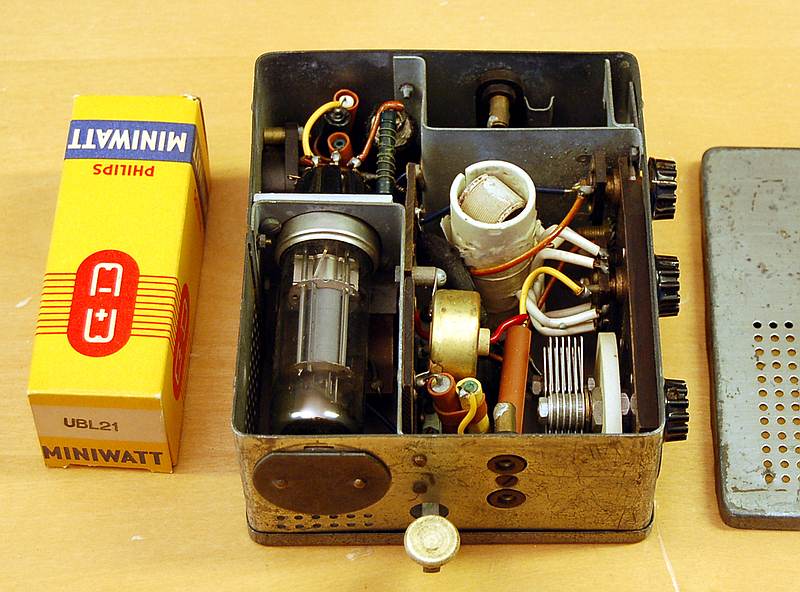

A new UBL21 is inserted, and the transmitter is ready for the first test.

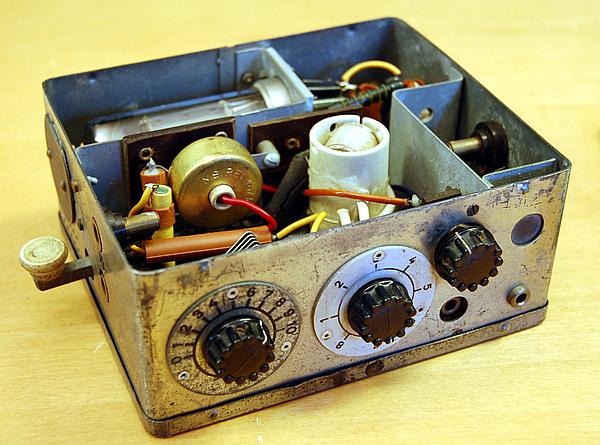

Inside of the S108/10. Top view.





Inside of the S108/10. Bottom view.

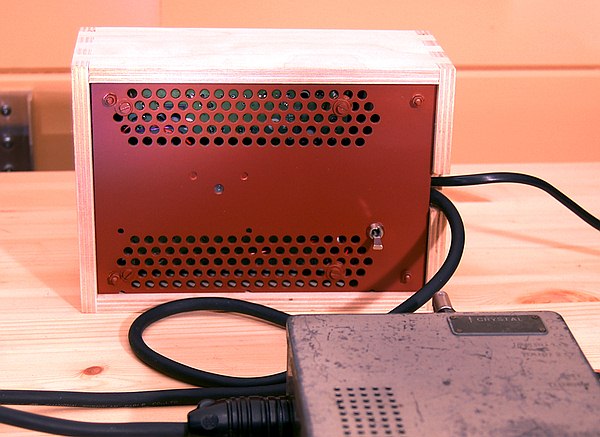

Transmitter power.

Here is more information about this transceiver.
http://www.cdvandt.org/abwehr_wireless.htm
