Here is my E52b collection.
This is a very interesting radio.
This is advanced mechanical technology.
I work as a broadcast equipment designer,
and I have learned much by study E52b to get ideas in my products.

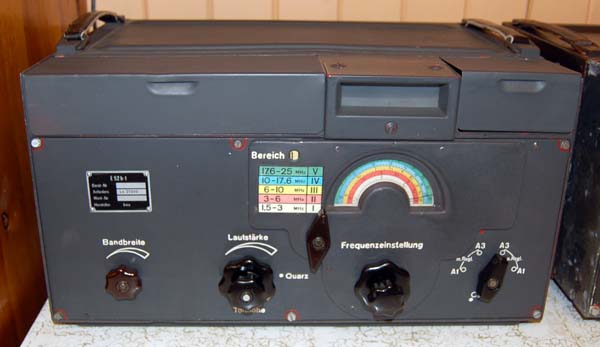

1 ... E52b-1, Shack


Original paint.

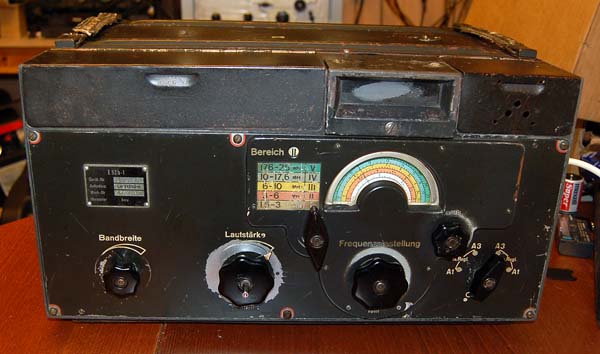

2 ... E52b-5, Serial nr. 1466, from Trondheim, Black frequency microfilm.



This receiver is 100% OK and trimmed. Original paint. Variable BFO reinstalled.

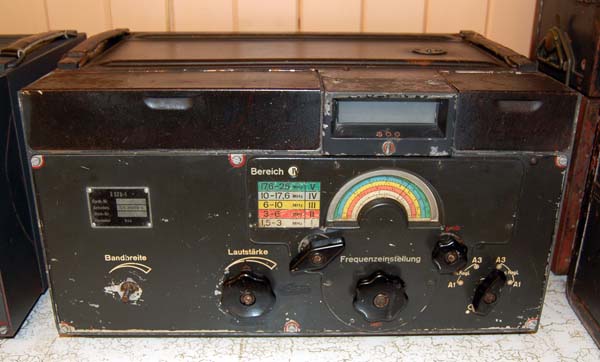

3 ... E52b-1, Serial nr. 1273, from Trondheim,


Variable BFO removed.

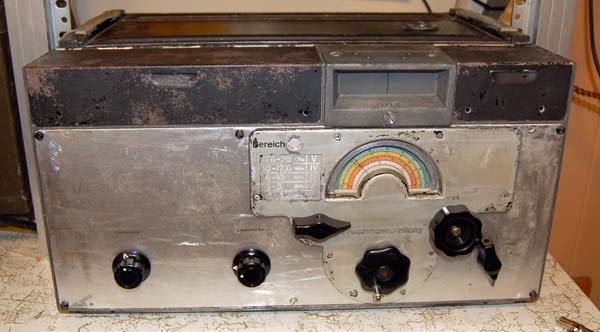

4 ... E52b-1, Serial nr. 2242, from LA8AK


This receiver is 100% OK and trimmed. Variable BFO removed.

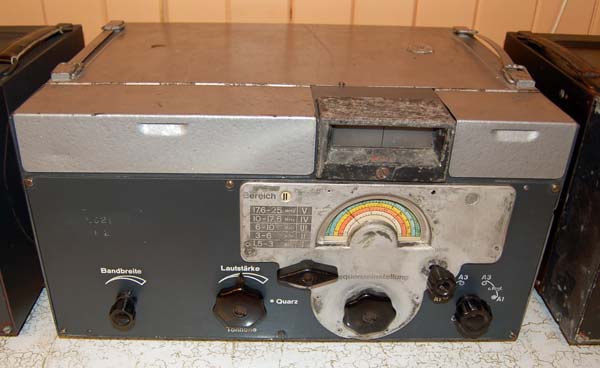

5 ... E52b-1, Serial nr. 734, Black frequency microfilm.


This receiver is 100% OK and trimmed. New paint, late war production without variable BFO
6 ... E52b-7, Restaurert


Variable BFO reinstalled.

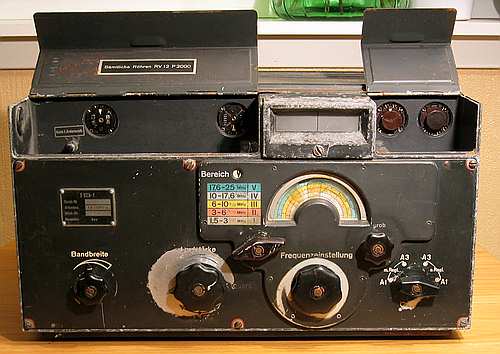

Köln E52bb is the best short-wave receiver produced under WW2.
The performance can be compared with the R390.
R390 is a famous US receiver from the 50’s, 60's and 70's.
E52 is a super heterodyne receiver with an IF frequency on 1 MHz.
The MF filter is extremely good with a variable bandwidth from 200 Hz to 10 KHz and with a flat pass band.
Mirror frequency is < 1: 50000.

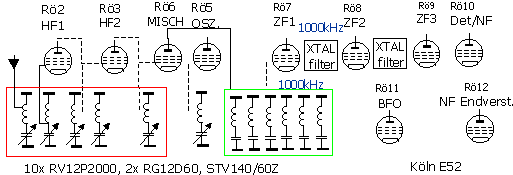

LA8AK's drawing

This is a block diagram over Köln.
The HF amplifier have 5-gang tuned circuits.
The oscillator capacitor tuning capacitor is synchronised with the HF amplifier capacitors
in a 6-gang capacitor. This heavy filtering gives a very good rejection of unwanted signals.
Both mirror frequency and large signals on frequencies near the operating frequency.
The MF section is very advanced. It has 6 tuned circuits before the first amplifier.
Then the signal pas a XTAL filter, amplifier and a second XTAL filter.
The pass band of the XTAL filter can be selected from 200 Hz to 10 kHz with the pass band regulator.



INSTRUCTIONS FOR KOELN E52 RF & MIXER/OSCILLATOR COIL UNIT REMOVAL

by GW6WRP -  Ron


E52b-1

Specifications for the E52 'Köln'

Frequency ranges





Modes

Power requirement

Dimensions

Weight

Sensitivity



Image rejection

IF rejection

IF frequency

BFO


Bandwidth

Frequency stability


1480-3020kHz
2980-6040kHz
5975-10050kHz
9950-17700kHz
17600-25200kHz

A1, A2, A3

110-230VAC 50-60Hz, or 12VDC

245mm x 446mm x 350mm

40,8kg

AM (wide) 3,5µV
CW (wide) 1µV
CW (narrow) 0,3µV

Better than 94dB @20MHz

Better than 100dB

1000 kHz

XTAL - 1000,9kHz
or 995 kHz - 1005 kHz

continuously variable between 200 HZ - 10 kHz

better than 30 x 10 E-6 °C




E52b-1

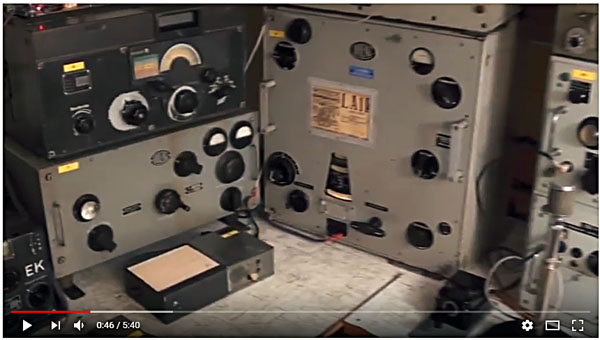

Film, Demo of E52b



POWER



HD




HD



HD
