LA6NCA RADIO COLLECTION

5W.S.b





For full resolution of the images you can click twice on them.

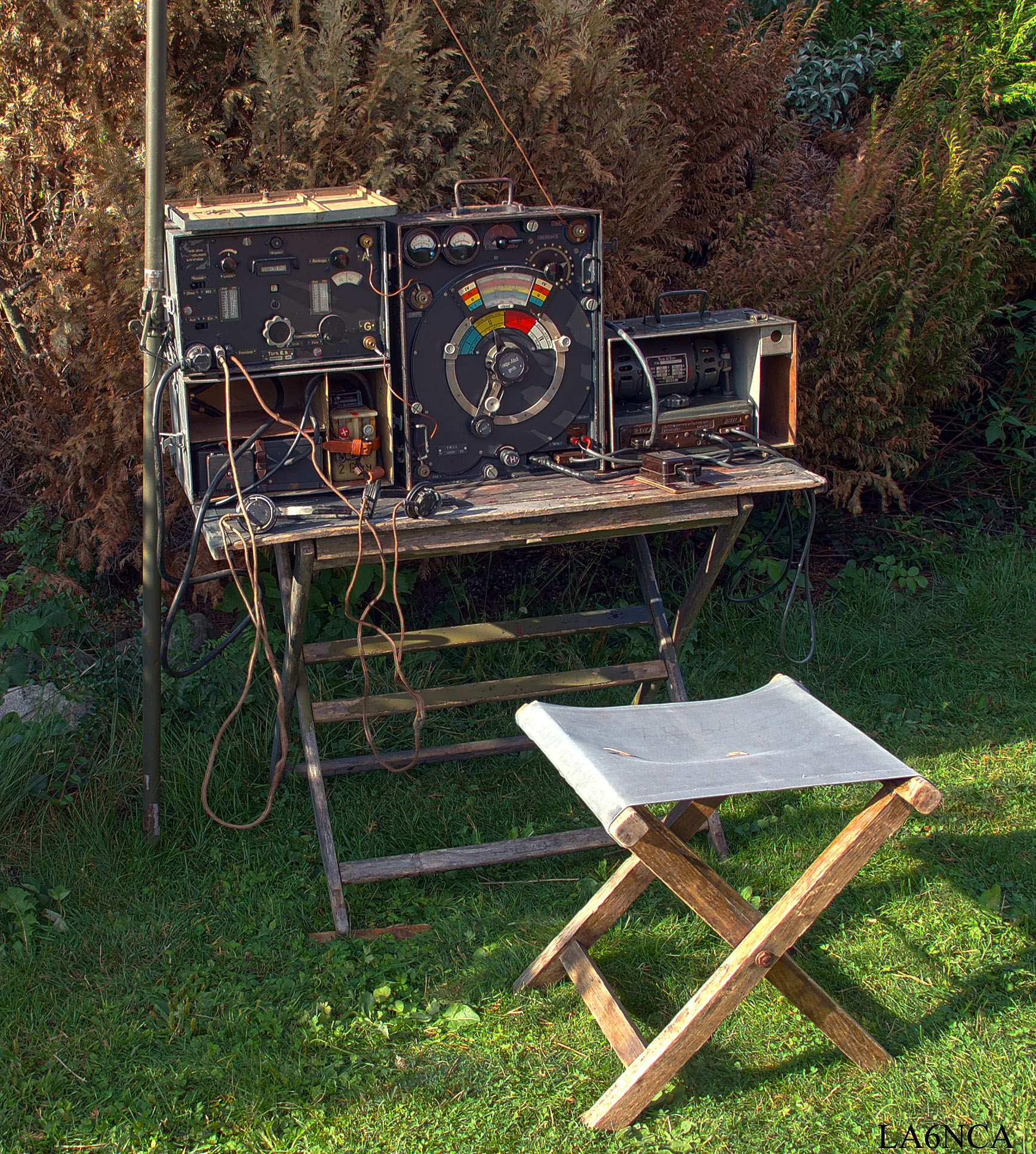

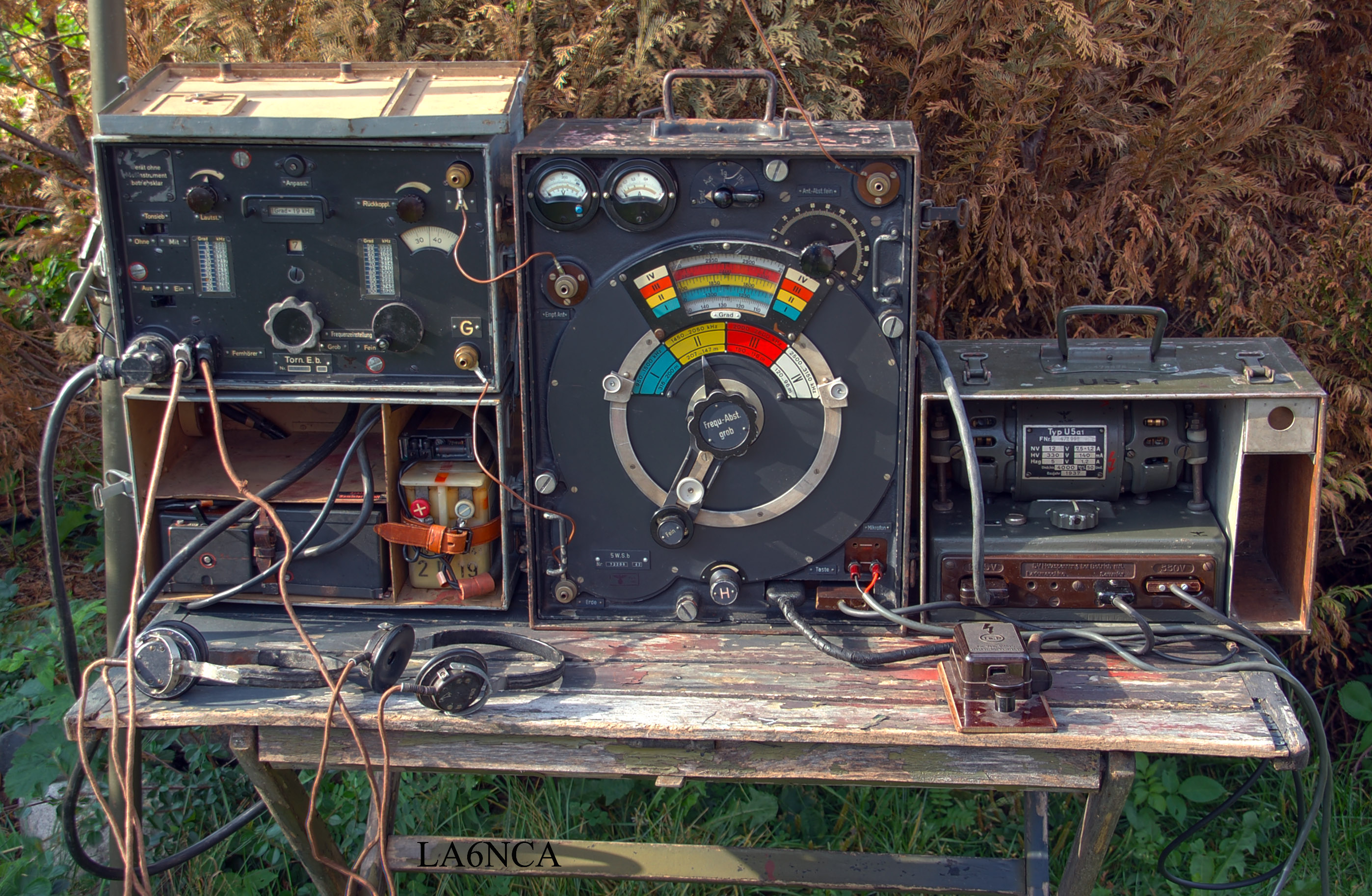

I have traveled into the forest here. I have set up a CW station here.
From my video.
https://youtu.be/aGsYxic4h-A

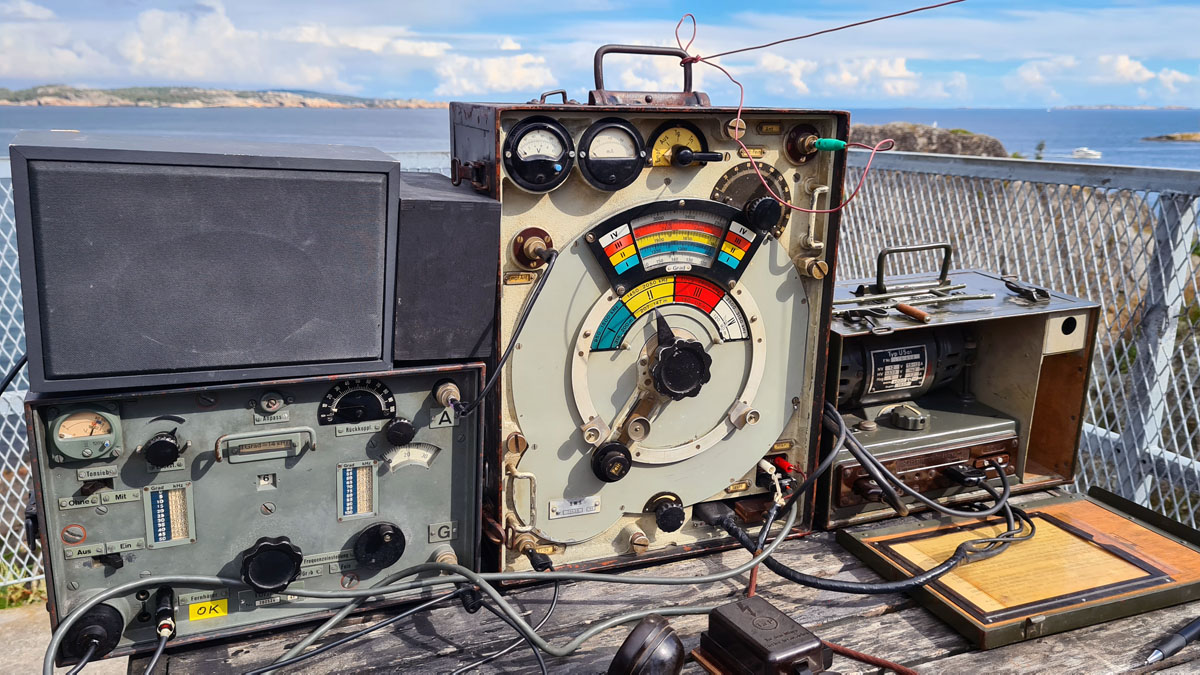

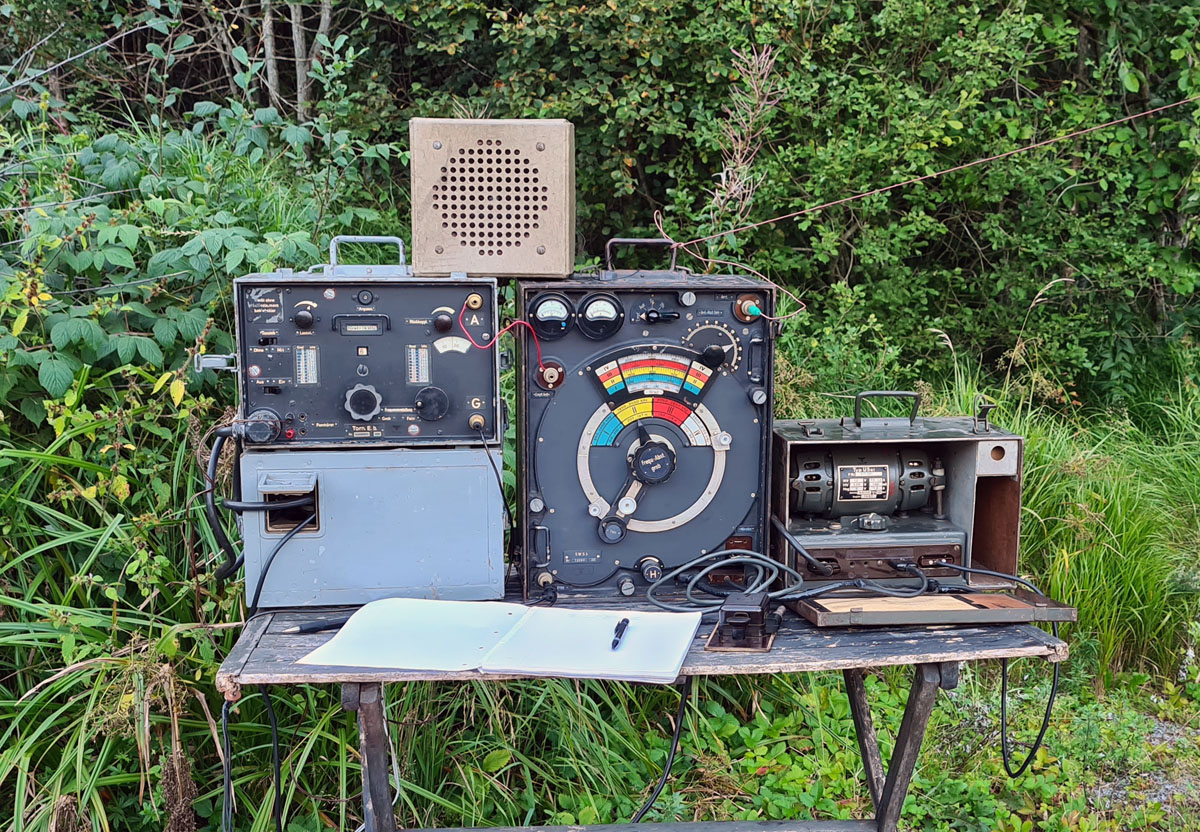

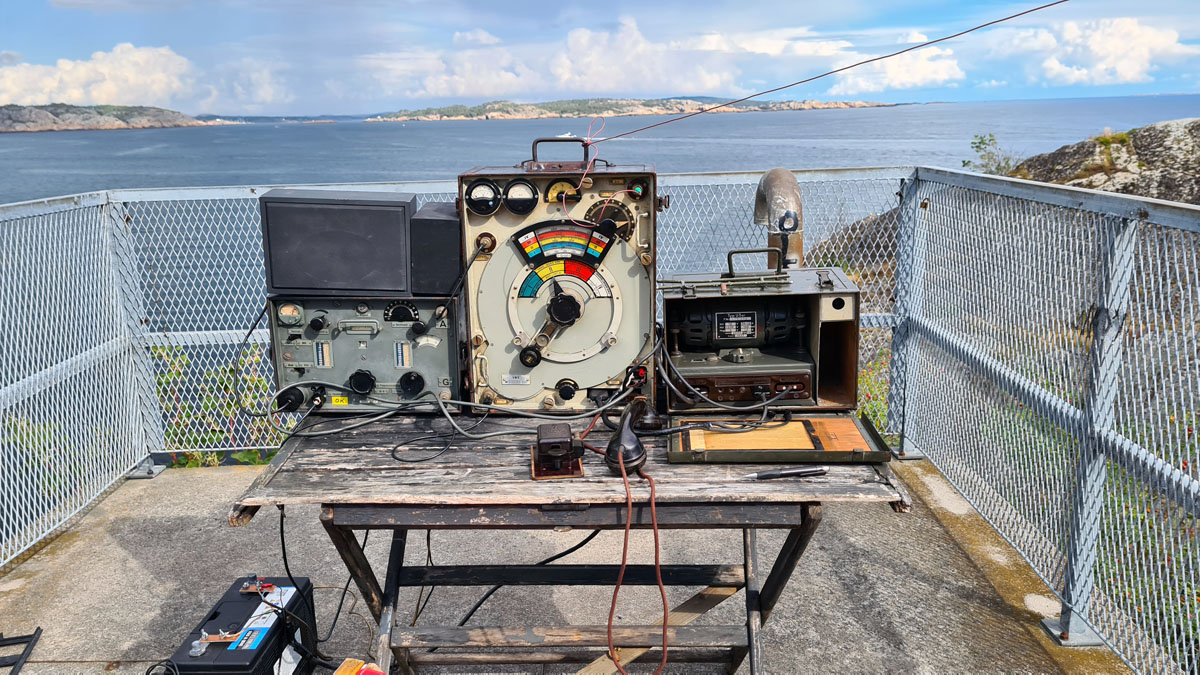

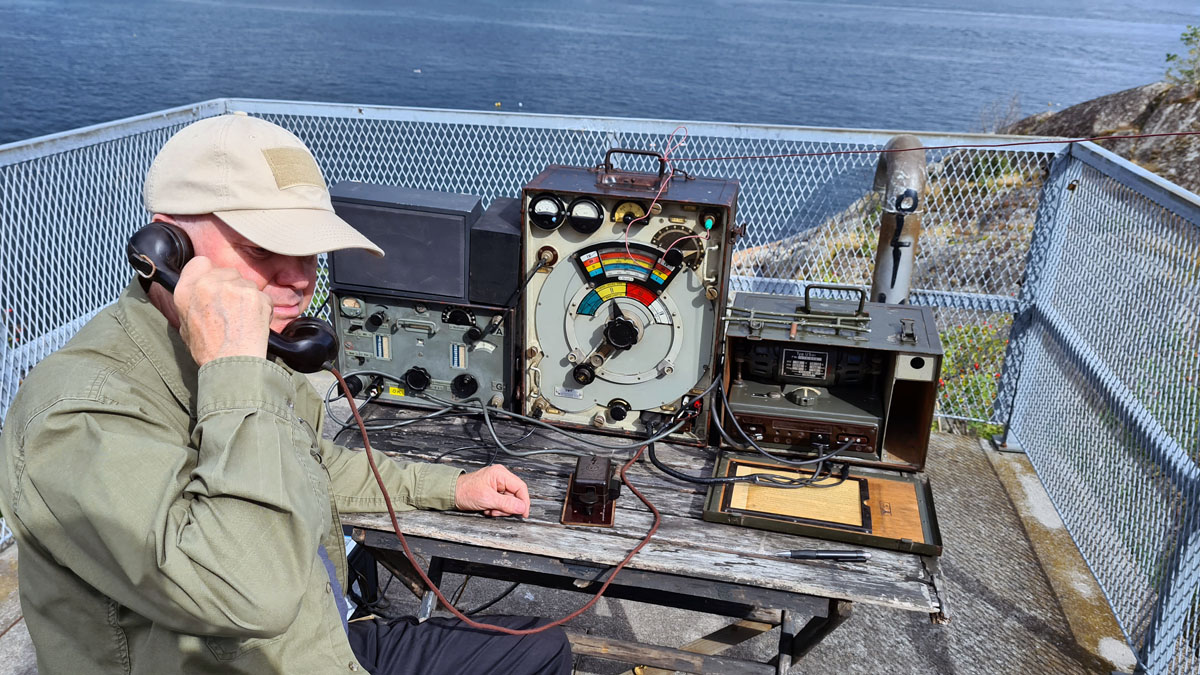

Now I have traveled to the coast. I transmit here with AM.









From my video.
https://youtu.be/dmkI2L5cy9k


5WS.b No. 72208 / 1942

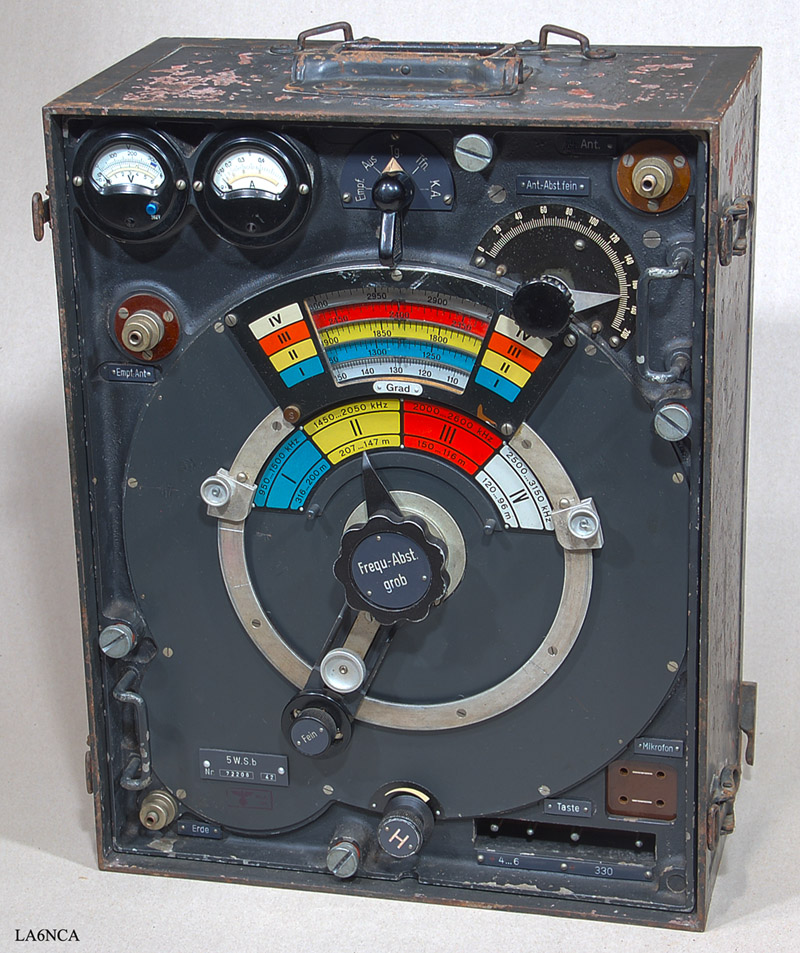

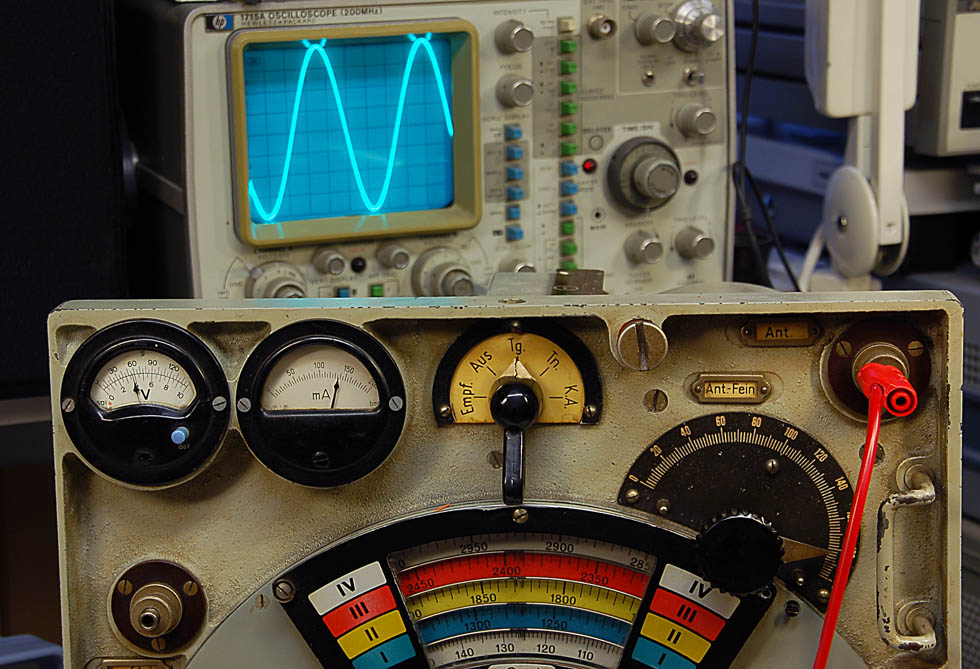

5W1a

Transmitter for medium wave.
5 Watt output power.
Frequency range is 950 - 3150 kHz.
Modulation AM and CW.
Two tubes RS241 is used.

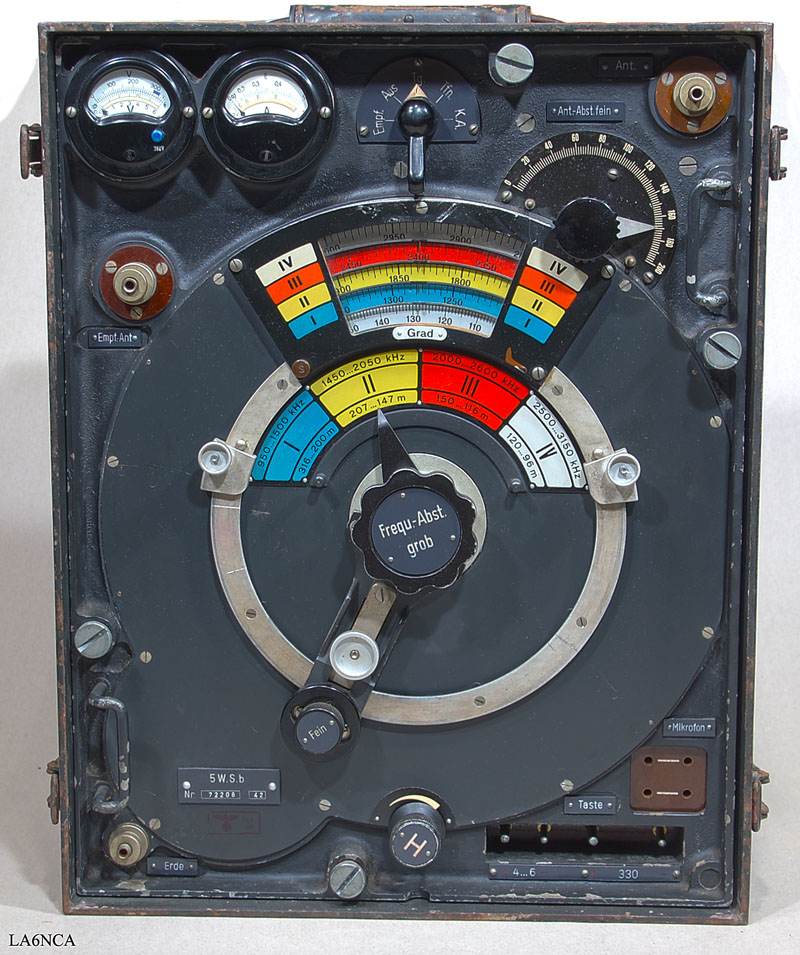

5W2a

Designed as early as 1934 by Telefunken.
This is produced in 1942 and have serial number 72208

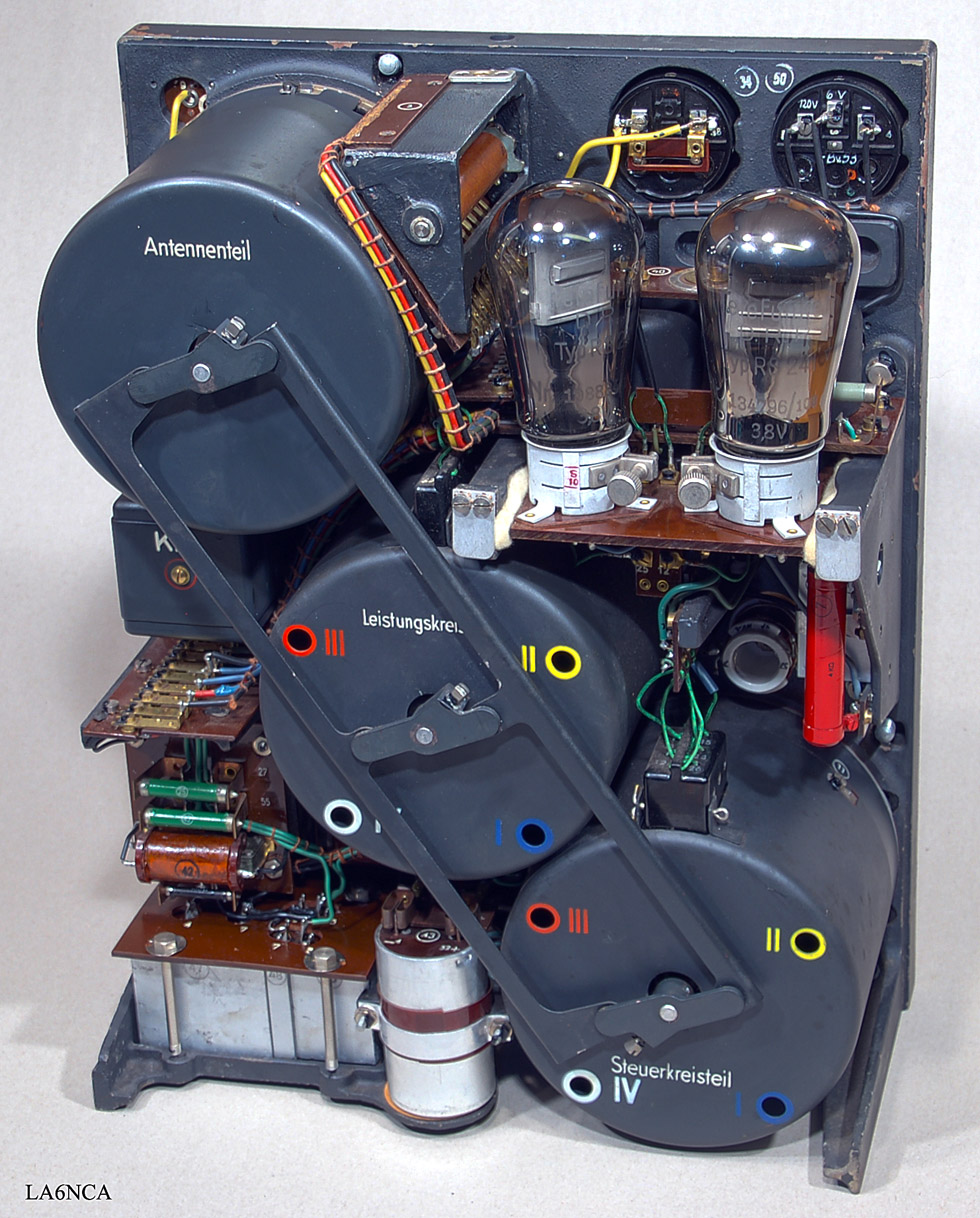

5W4a

Very well designed Internally.
The old building methods are kept even if it is produced in 1942.
The resistors are mounted on holders.

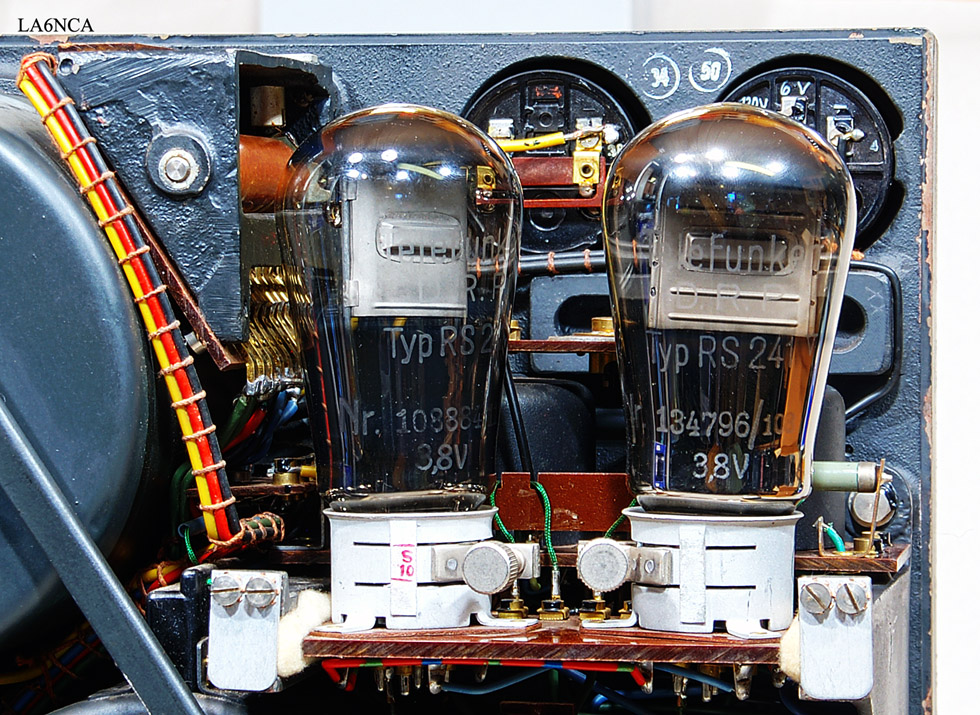

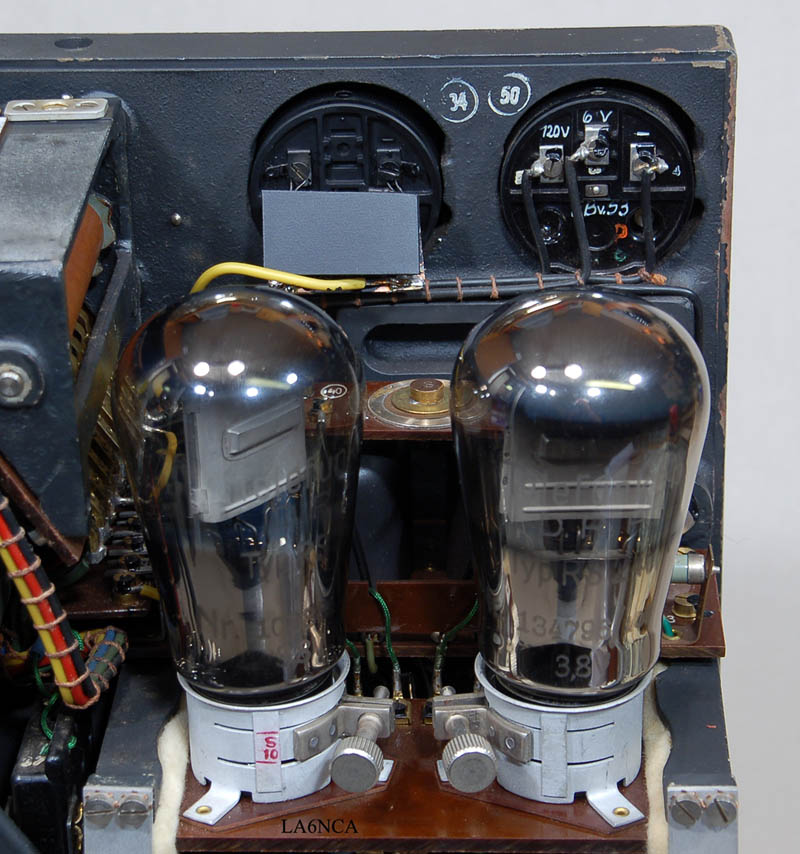

5W3a

RS241 Telefunken tubes.
These are rare and valuable tubes.
They are often used in high end audio amplifiers.

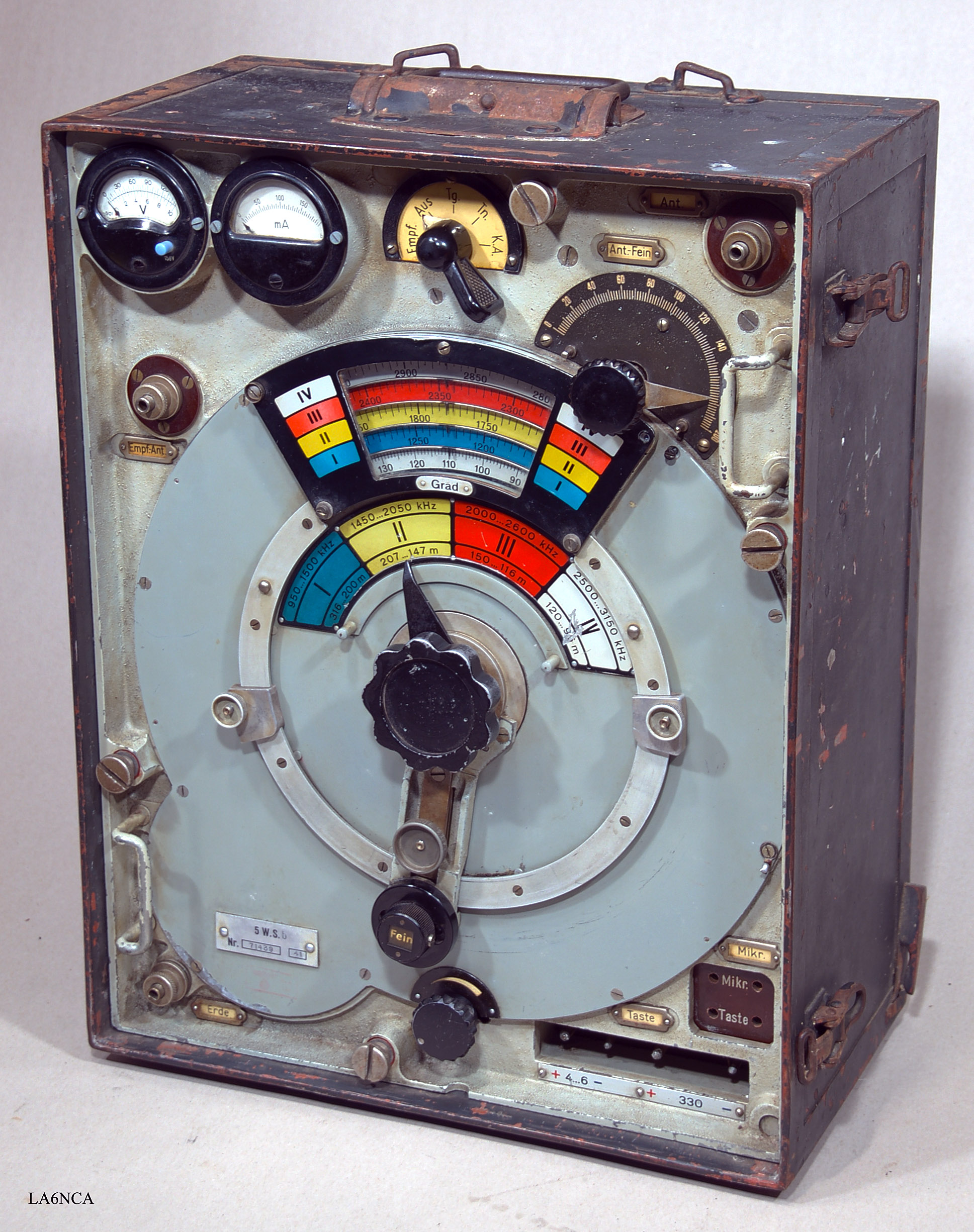

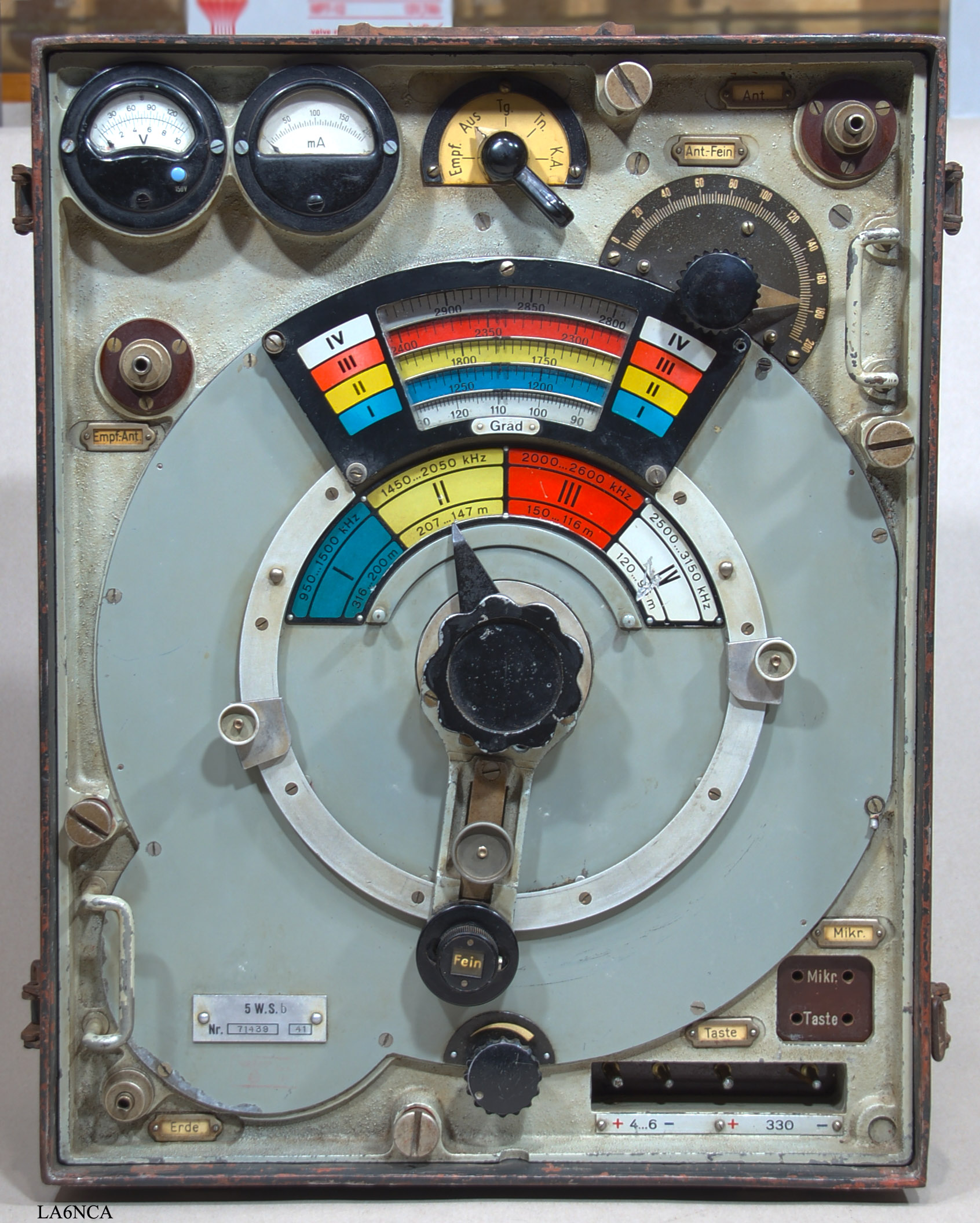

5WS.b No. 71439 / 1941



5W13a




5W14a

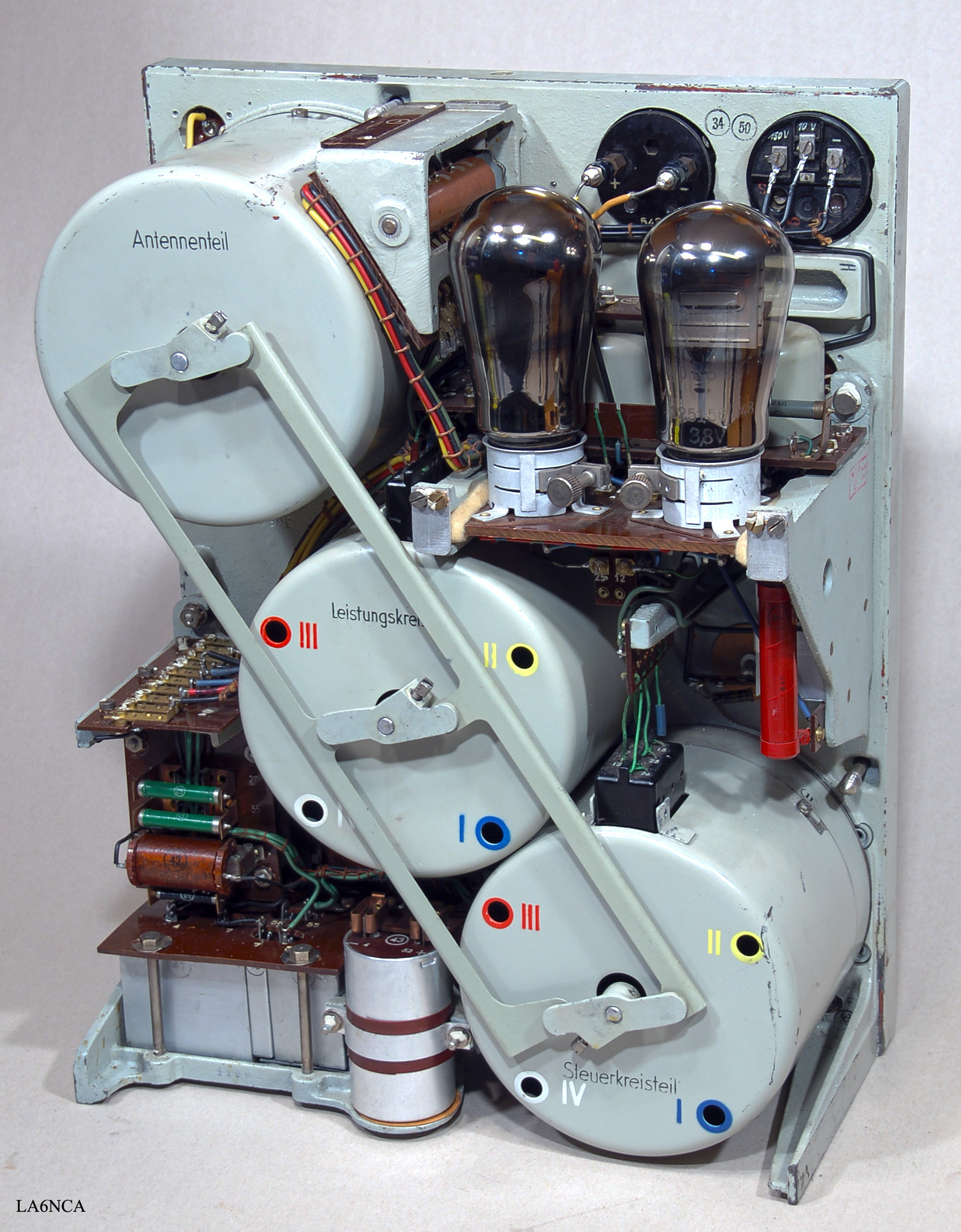

5W12a




5W10a

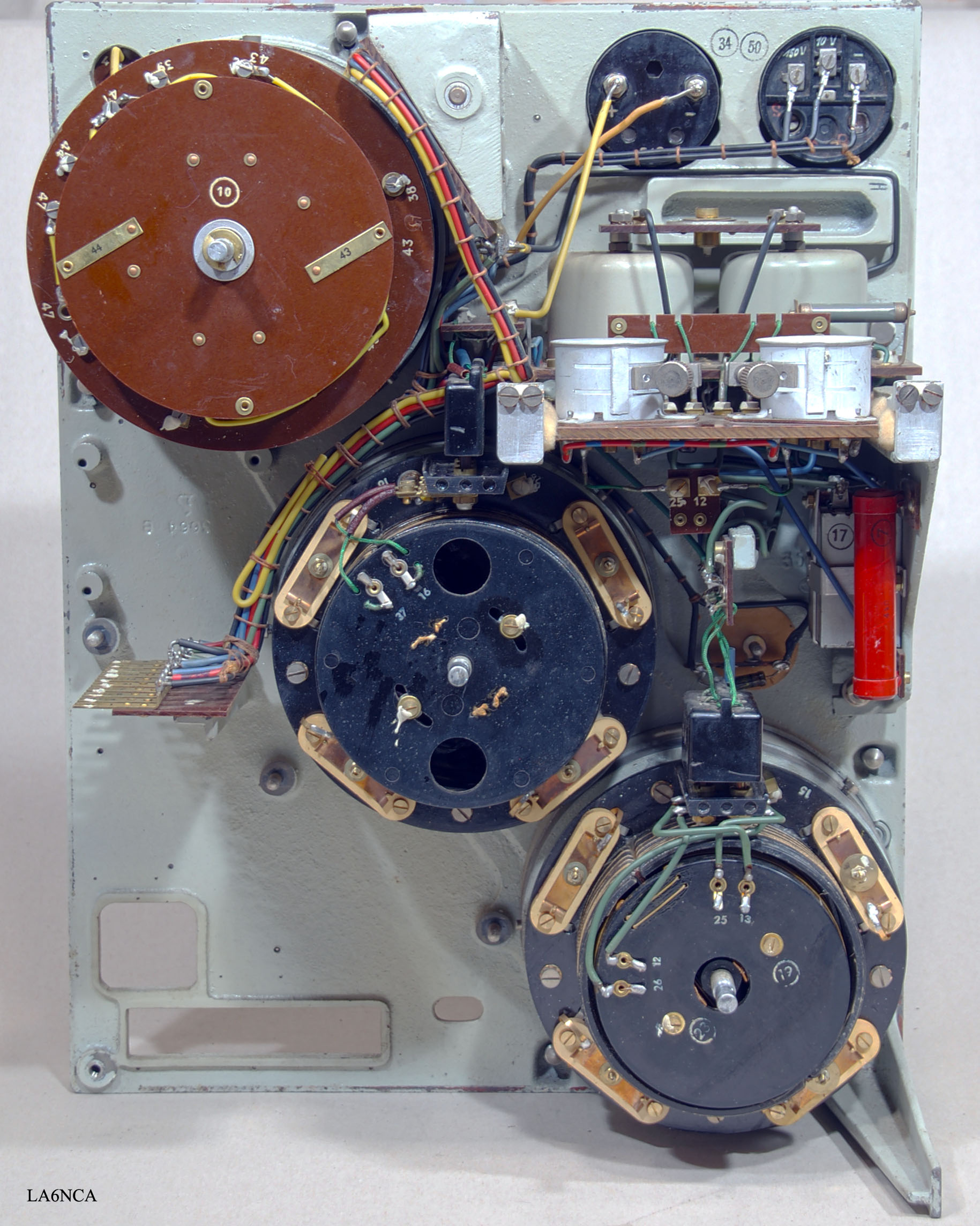

Here are the three screen boxes removed.
Power filter is also removed.

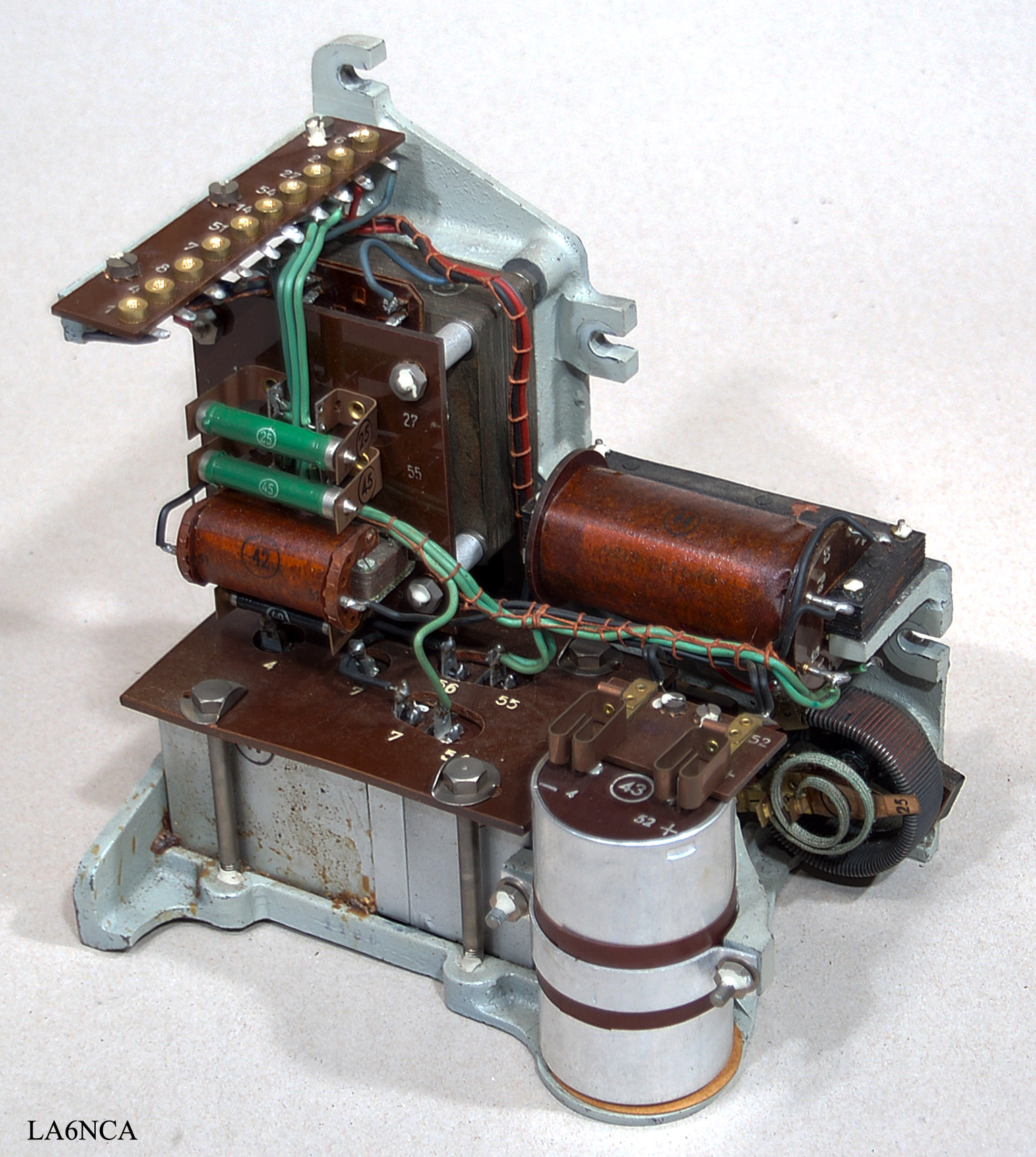

5W8a

Power filter is taken out of the transmitter.
Two of the capacitors is shorted and must be repaired.
Solid construction.

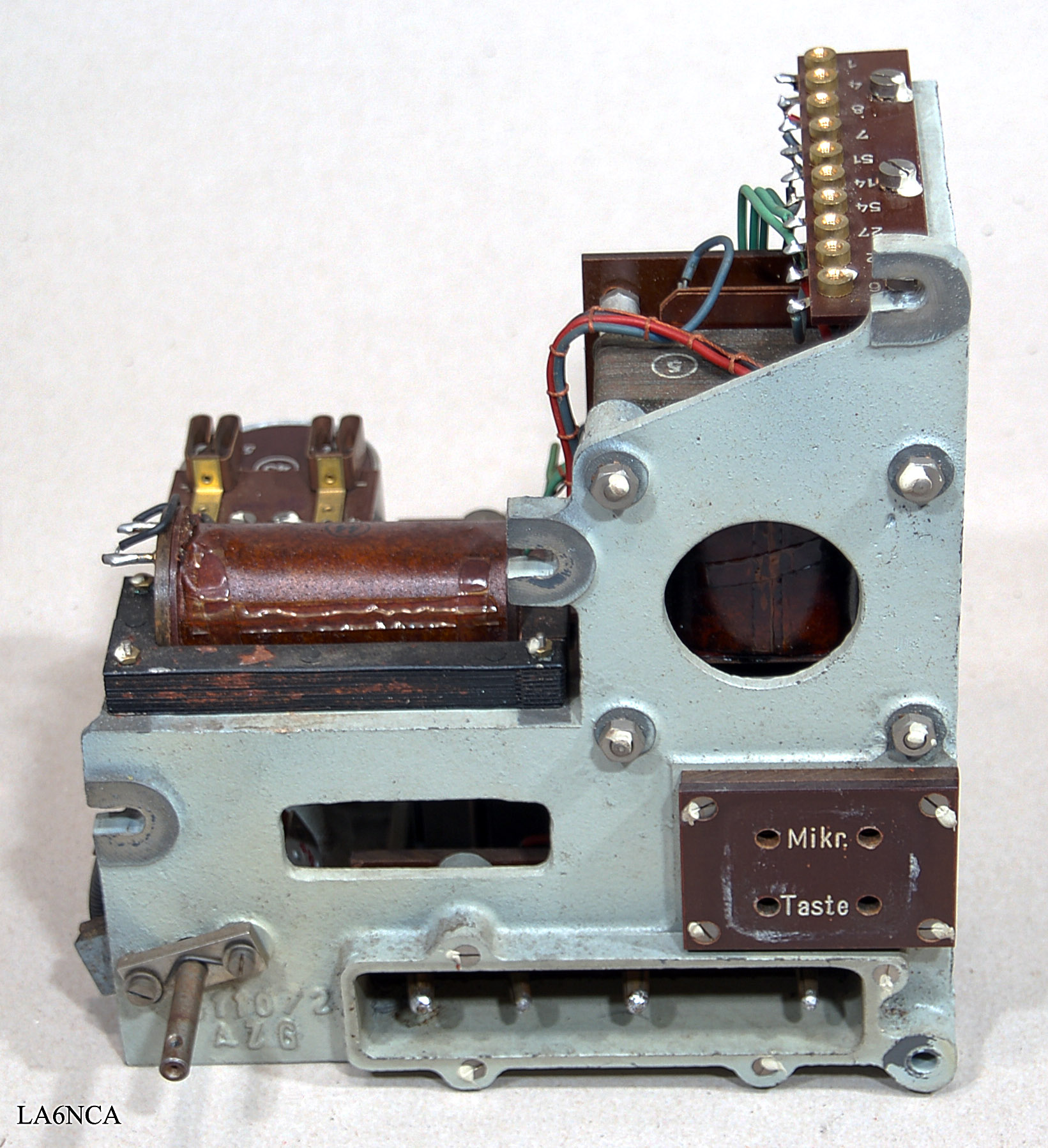

5W7a

The filter front view.
All connections to the transmitter is on top.
The numbers are node numbers listed in wiring diagram.

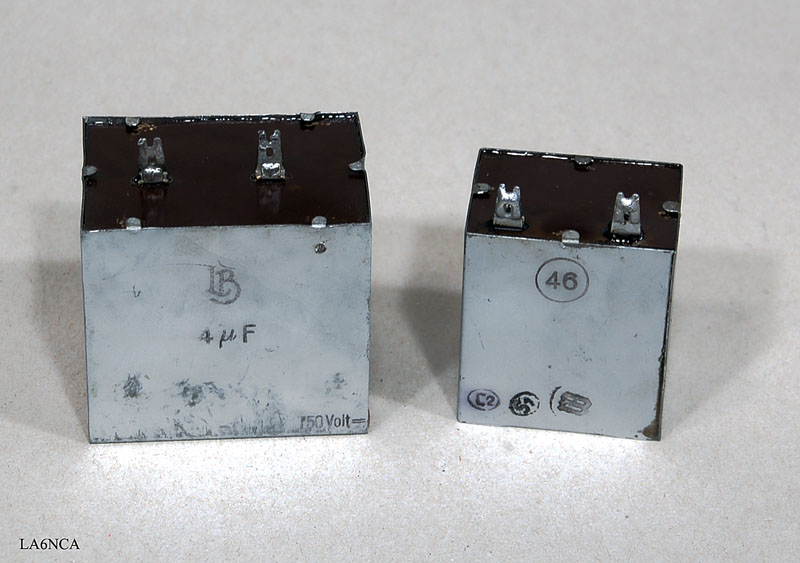

Two of the capacitors were not good.
I had to replace them with new ones.
Mounted the new inside the old housing.
Top quality MKT capacitors were used here.



The old capacitors are repaired.
You can not see it being done any modifications to them.

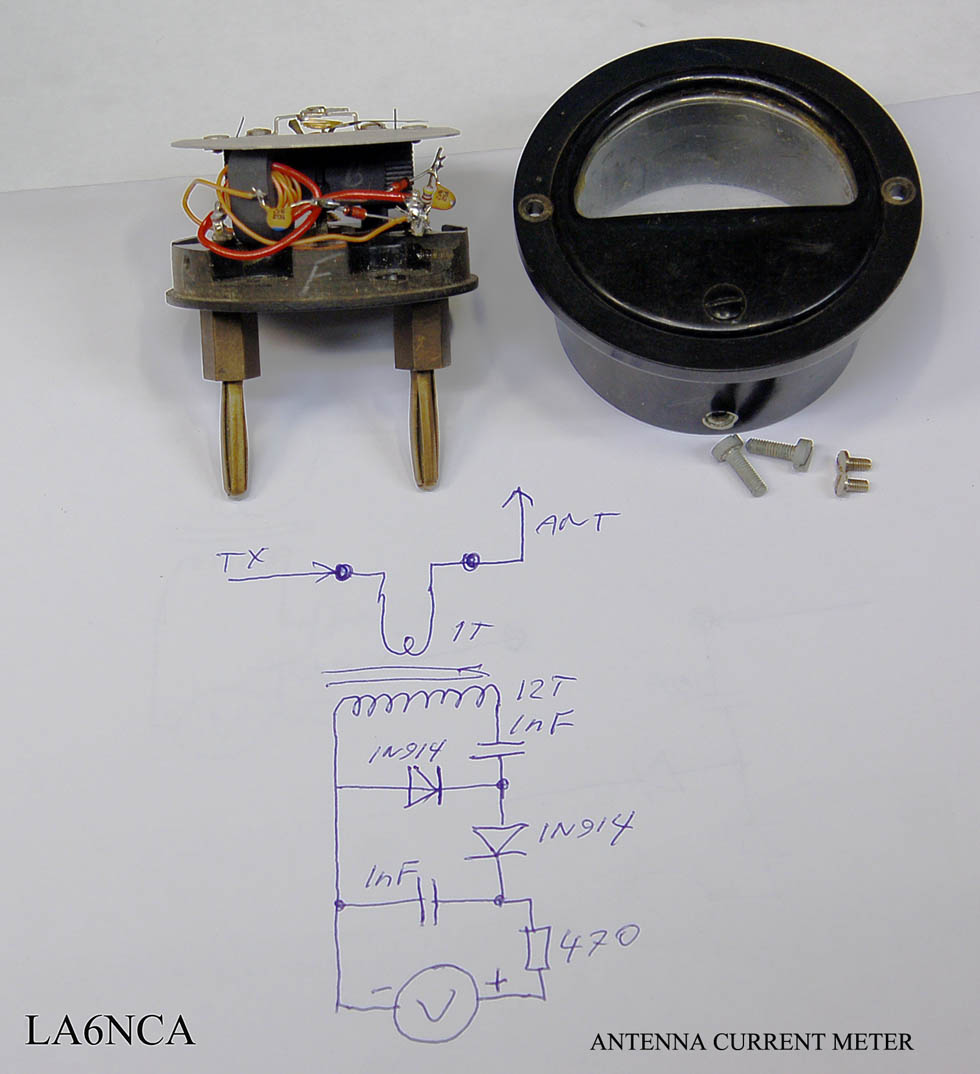

Antenna Current meter is broken on 5WS.b No. 71439.
I have designed a new circuit to replace the thermocouple sensor.
The entire circuit is built into the instrument.
A ferrite with two holes function as a transformer.
1 winding in antenna circuit, and 12 windings on the secondary side.
The resistance of the resistor must be adjusted the instrument.





Everything is now 100% OK.

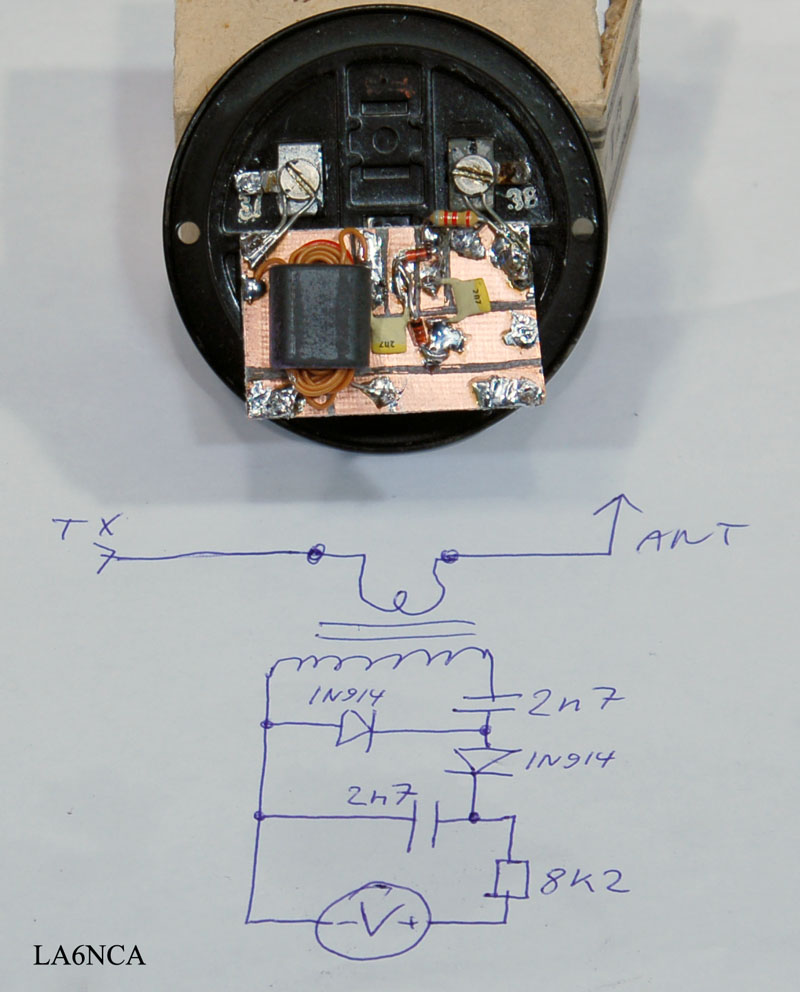

Serial no. 72208 / 1942 have also a problem with the antenna current instrument.
Here are my solutions on this problem.
This instrument is an original current instrument.
I have removed the thermocouple and connected the instrument directly to the terminals.






My circuit is mounted inside the small box.

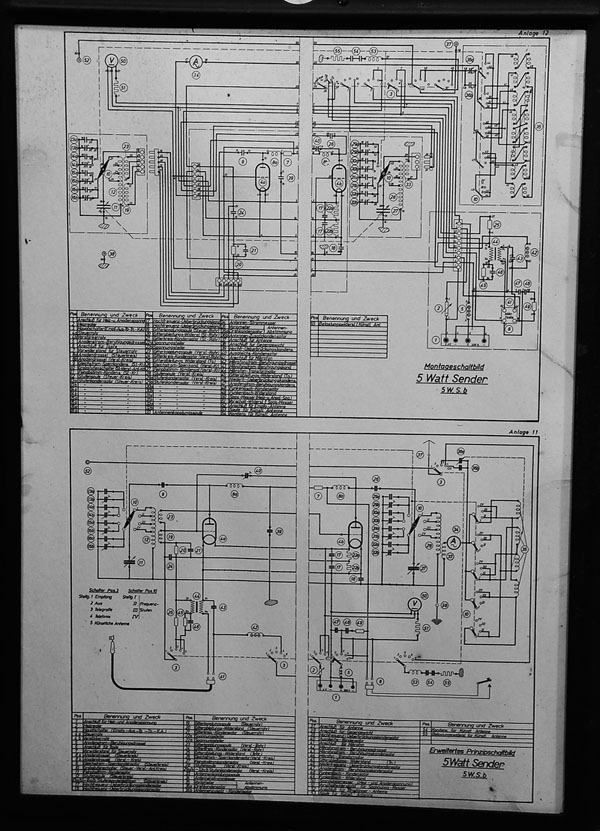

5W9a
