LA6NCA WW2 PAGE

Whaddon Mark VII (PARASET)
Serial no. 7606



The Paraset is a miniature transceiver designed for use by SOE
in espionage and other activities behind German lines during WW2.
The set is designed in 1941.
This radio is very popular among hams. Replicas are builds in large quantities.

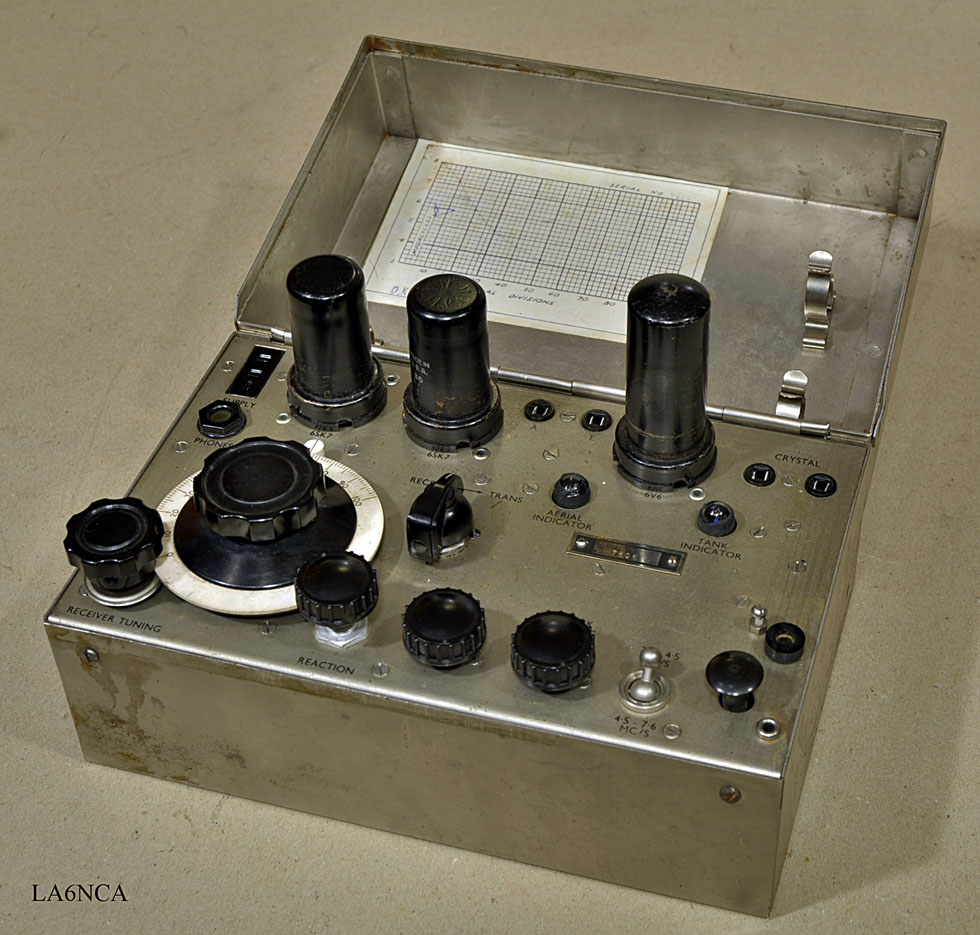

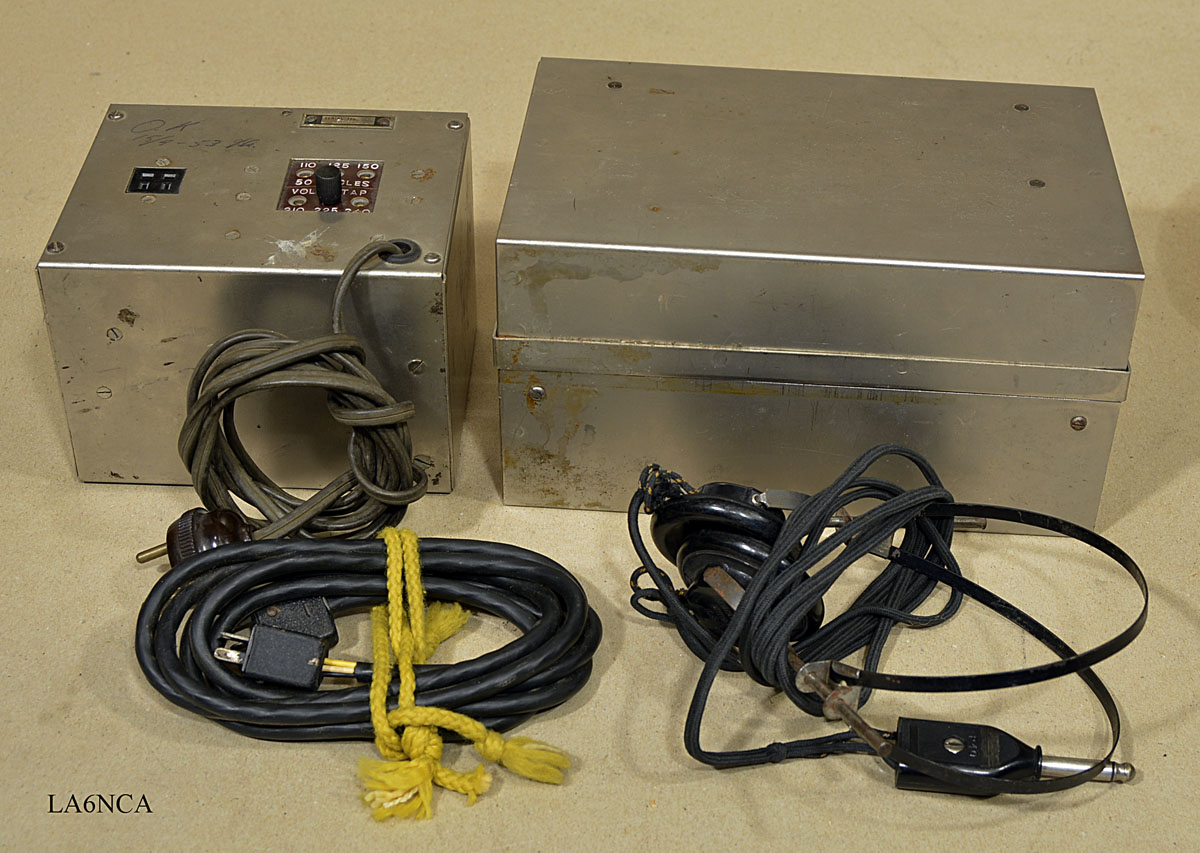

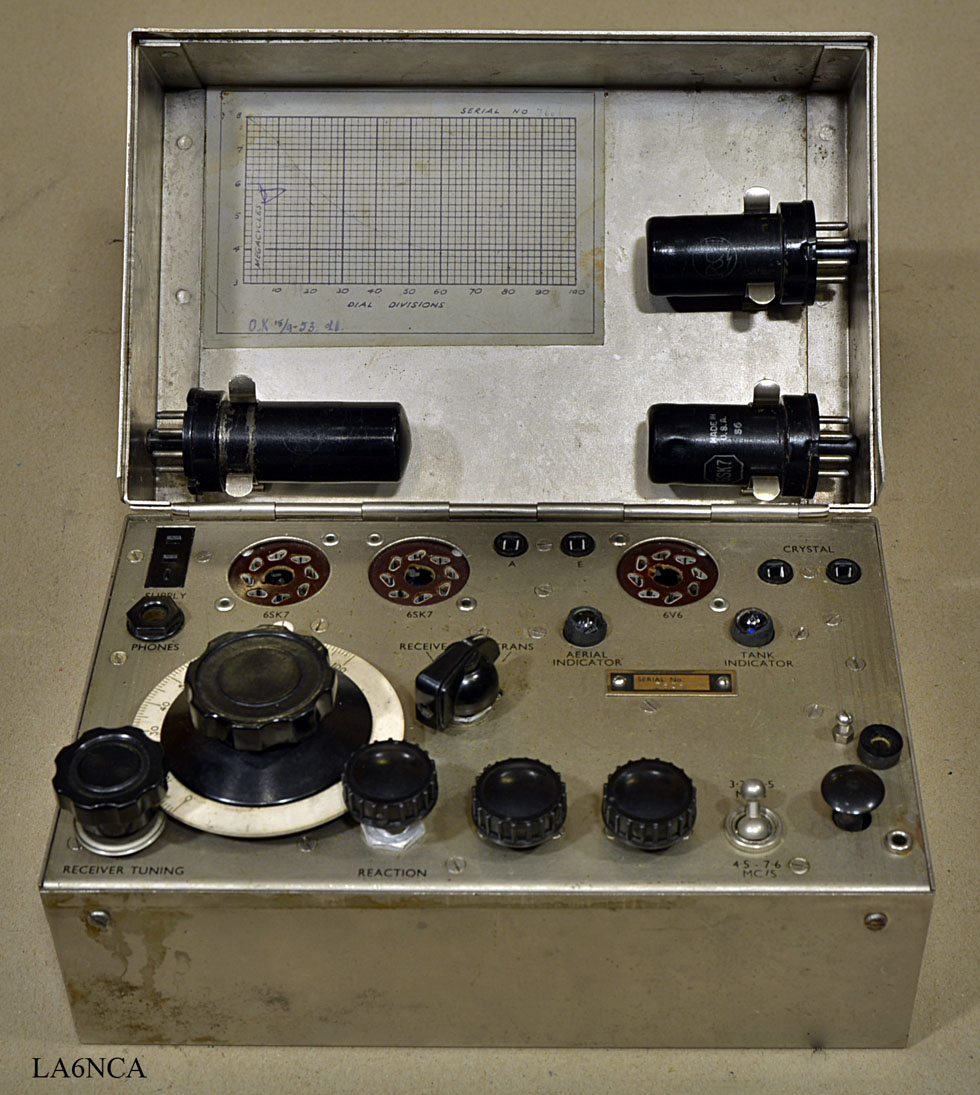

Compact and nice box on this radio.






I tested the radio, and it worked fine immediately.
My first QSO was with LA5FH.






The radio has been tested and found OK September 15, 1953.
What organization used this radio in 1953? Interesting......

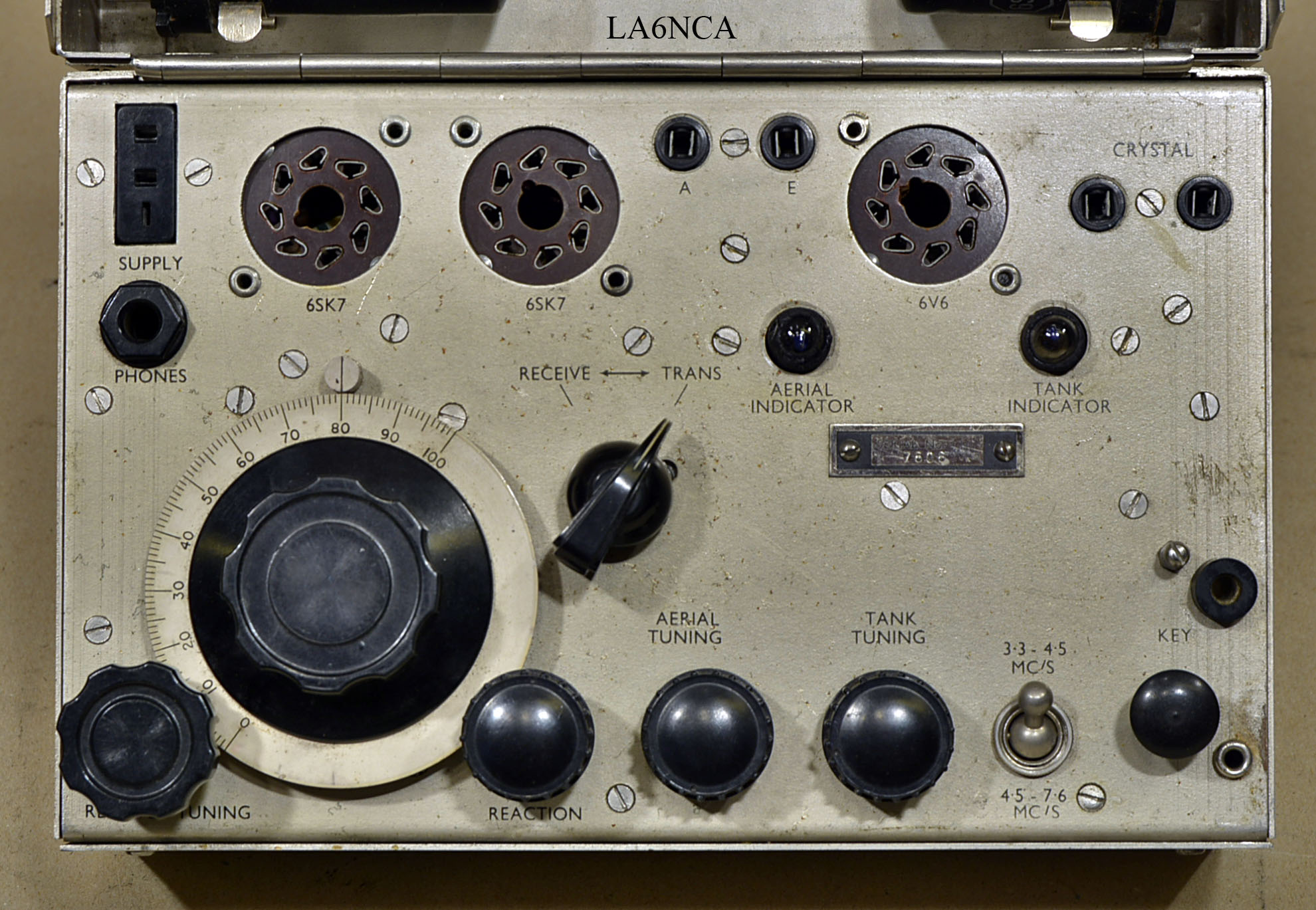

4a.jpg - HD

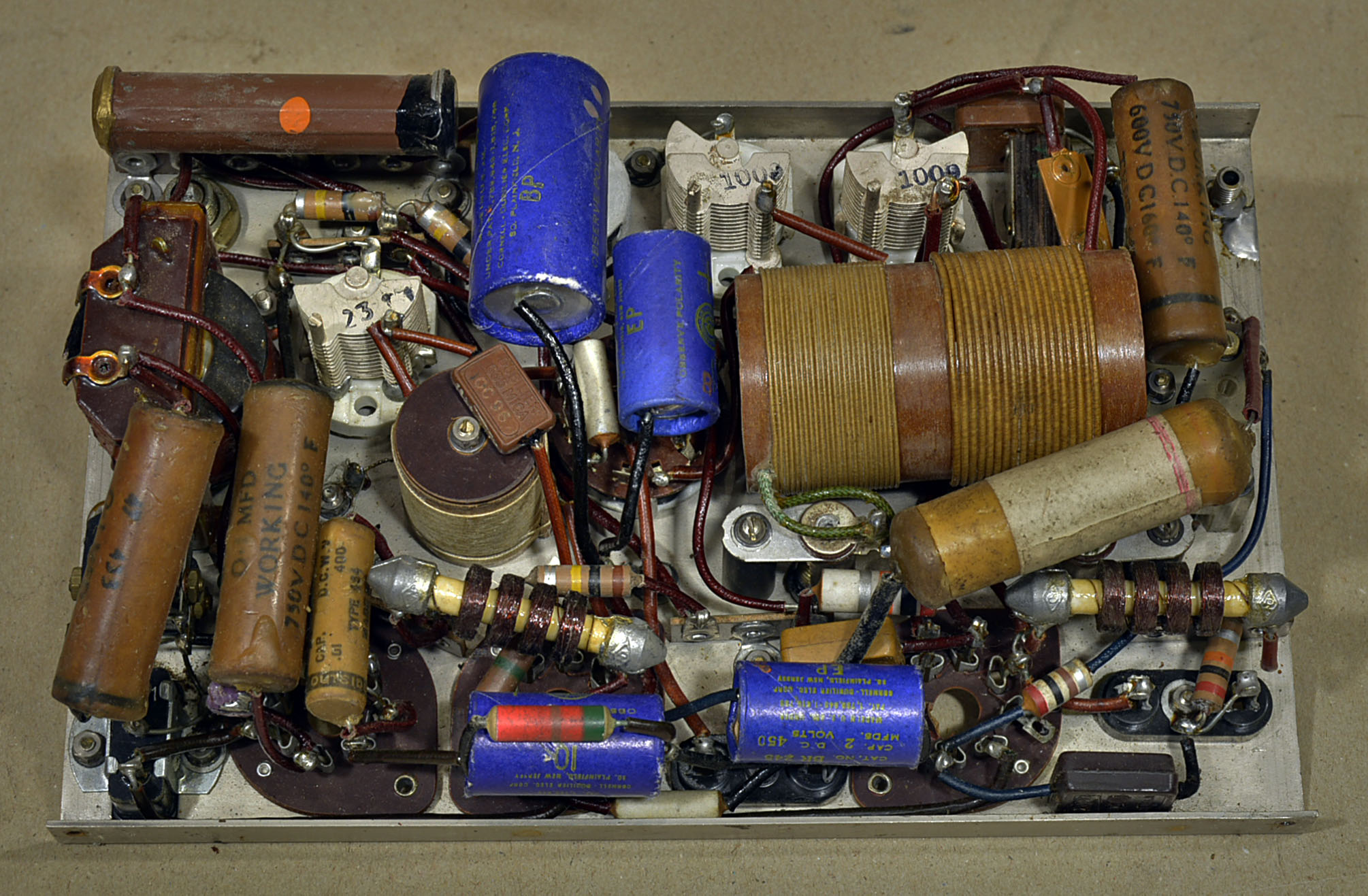

7a.jpg - HD

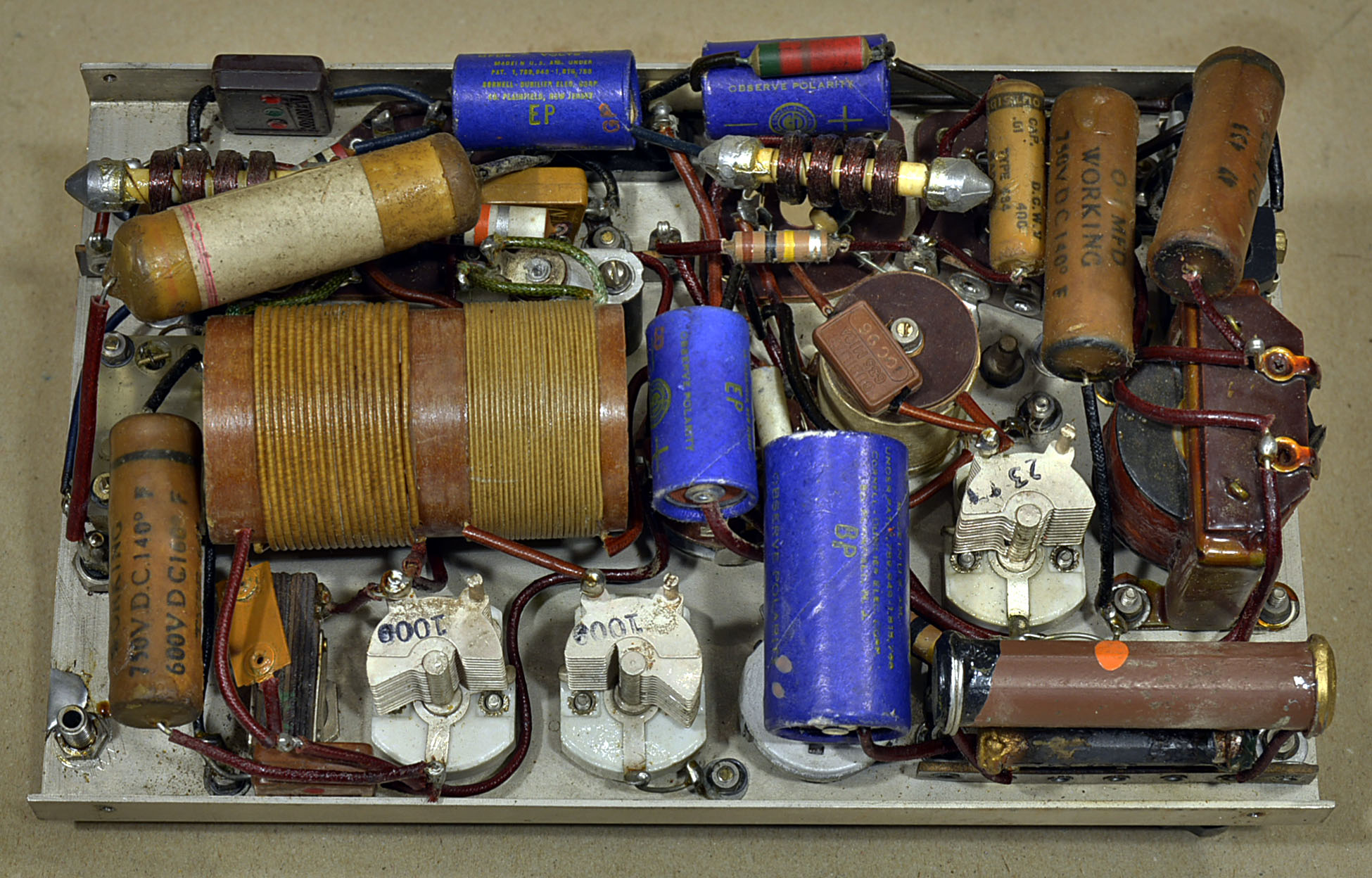

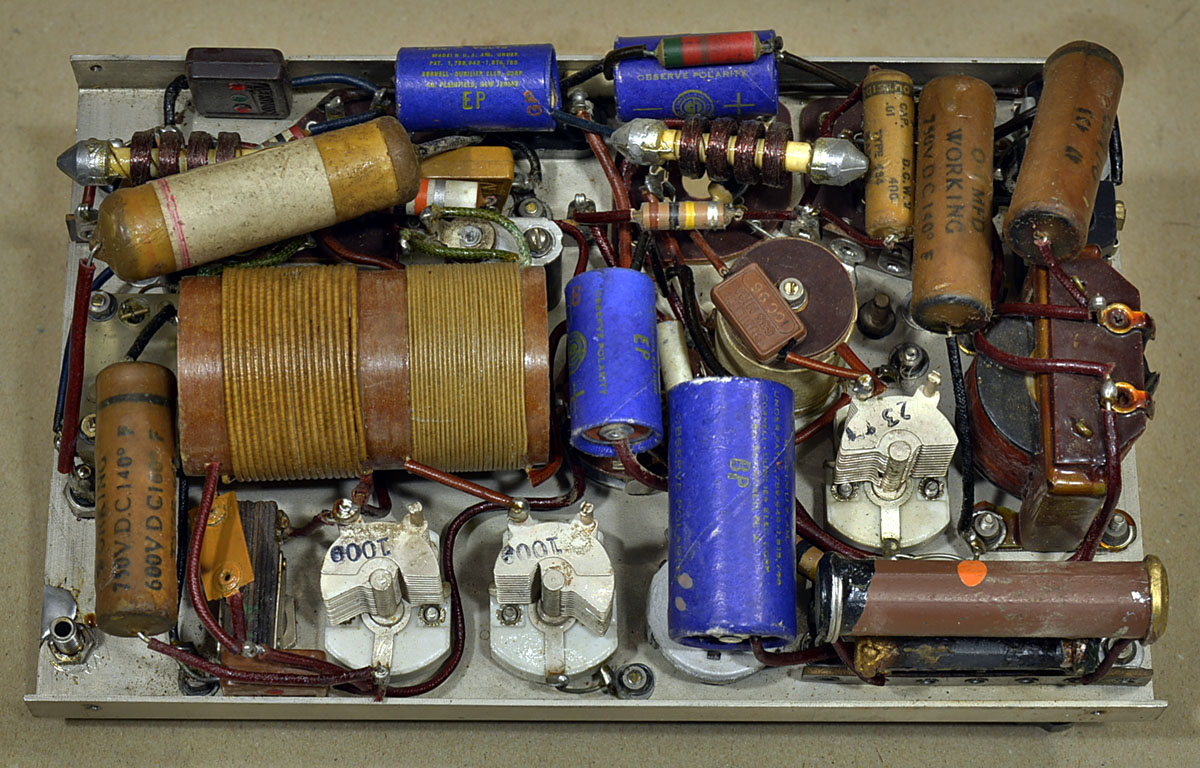

8a.jpG - HD

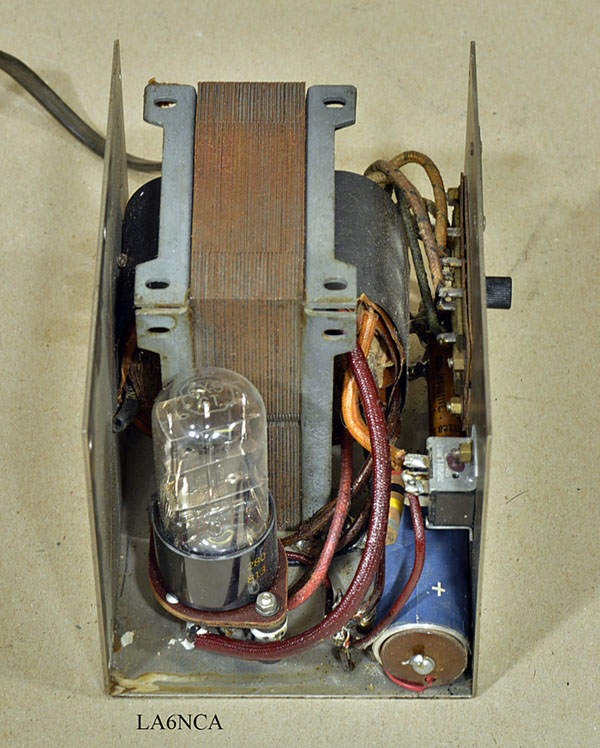

The power supply is very compact in a great box.

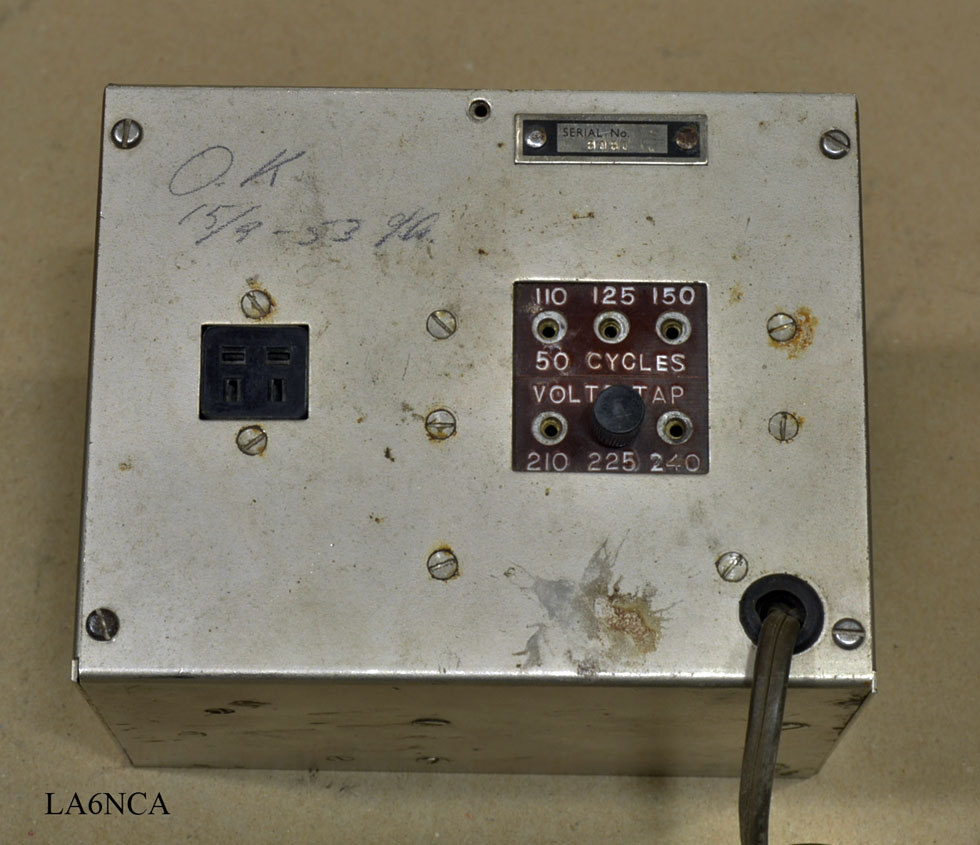

The power supply is also tested September 15, 1953

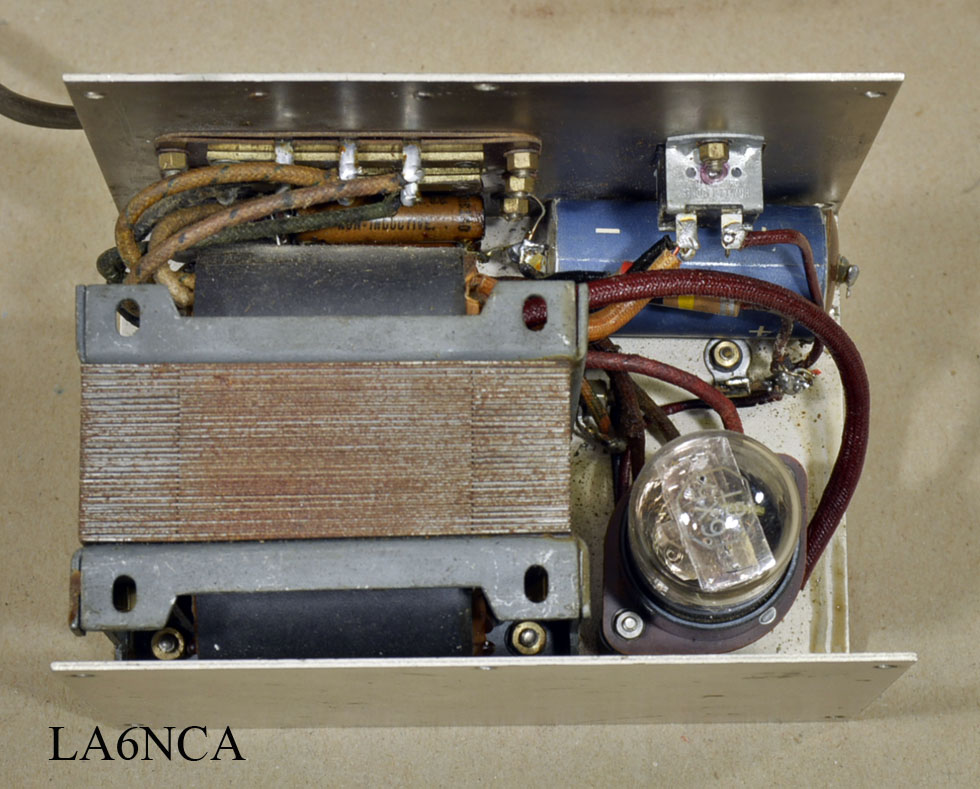

The power supply is very simple. Consisting of transformer, rectifier tube 6X5GT and a capacitor.






The power supply delivers 6 VAC and 350VDC.
