LA9LE / LA6NCA

HF1 - NO/PRC-111




Siden er under konstruksjon. Mer kommer !!!!


A Norwegian tactical MANPACK HF radiotranceiver

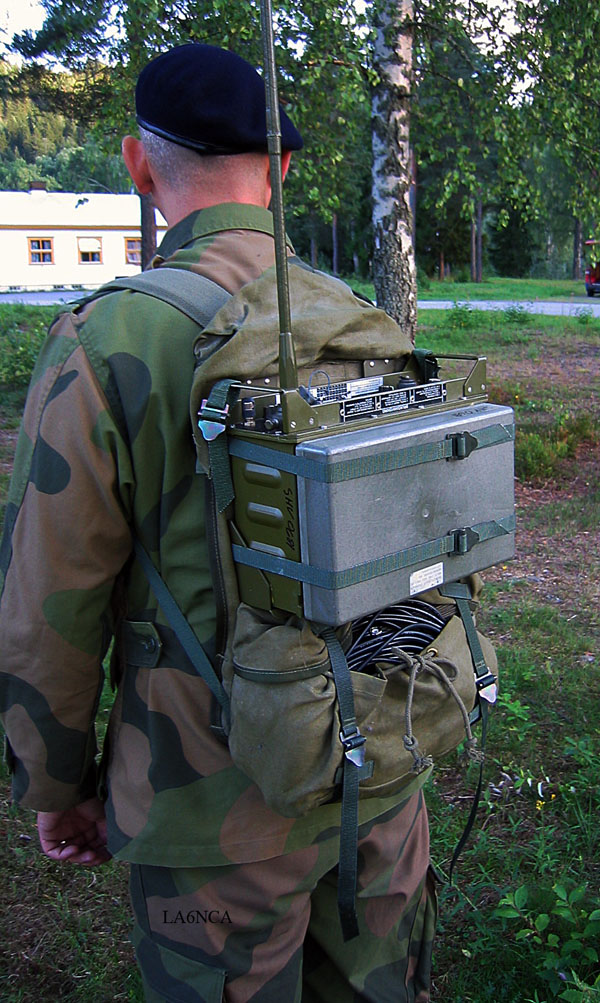

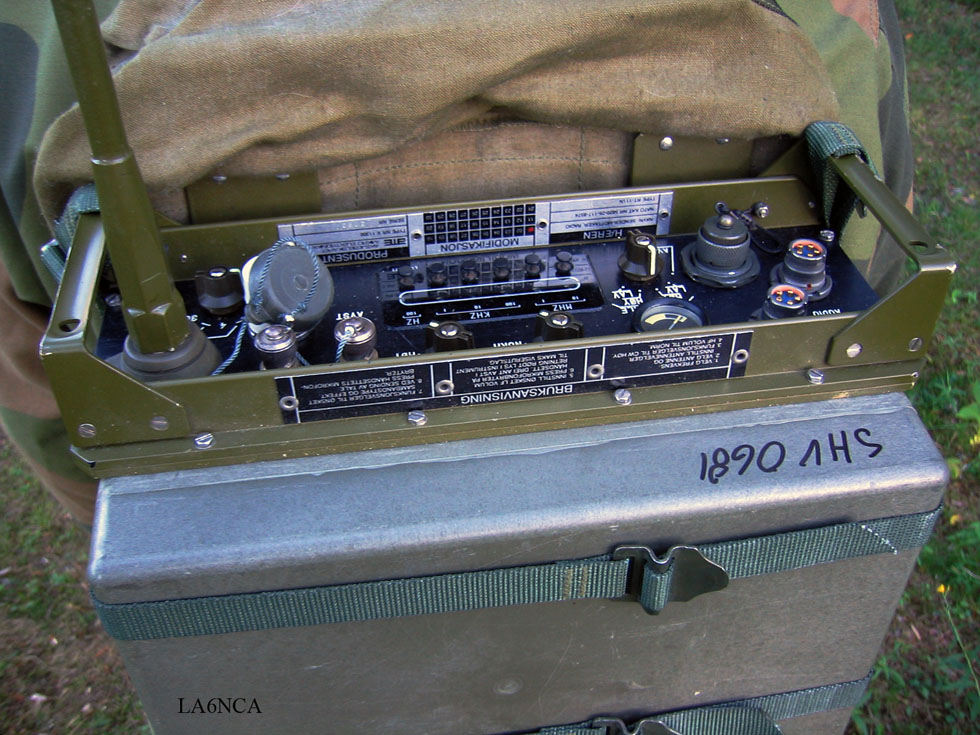

Radio mounted on a a back frame.

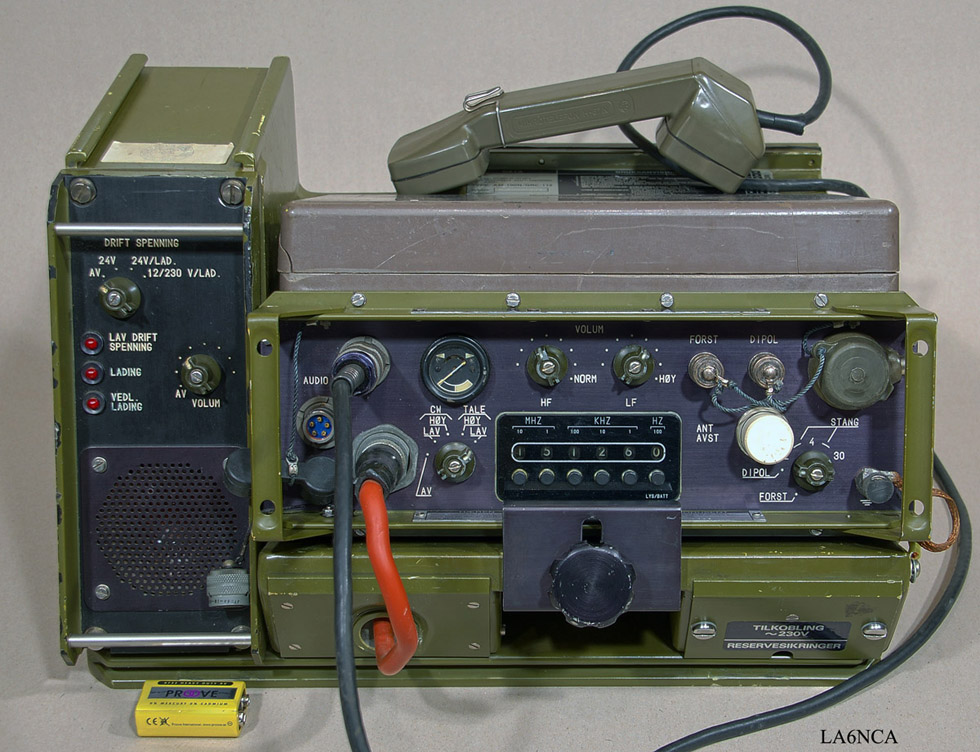

A large 24-volt Nickel Cadmium battery is mounted on the radio.





Radio mounted in a vehicle frame.






Sales brochure for NO / PRC-111


FIRST PROTOTYPE



The development of NO / PRC-11 was started in 1968 by FFI.
Development of the radio were made by AME in Horten.
The last radio was shipped from the factory in the late 1970's.

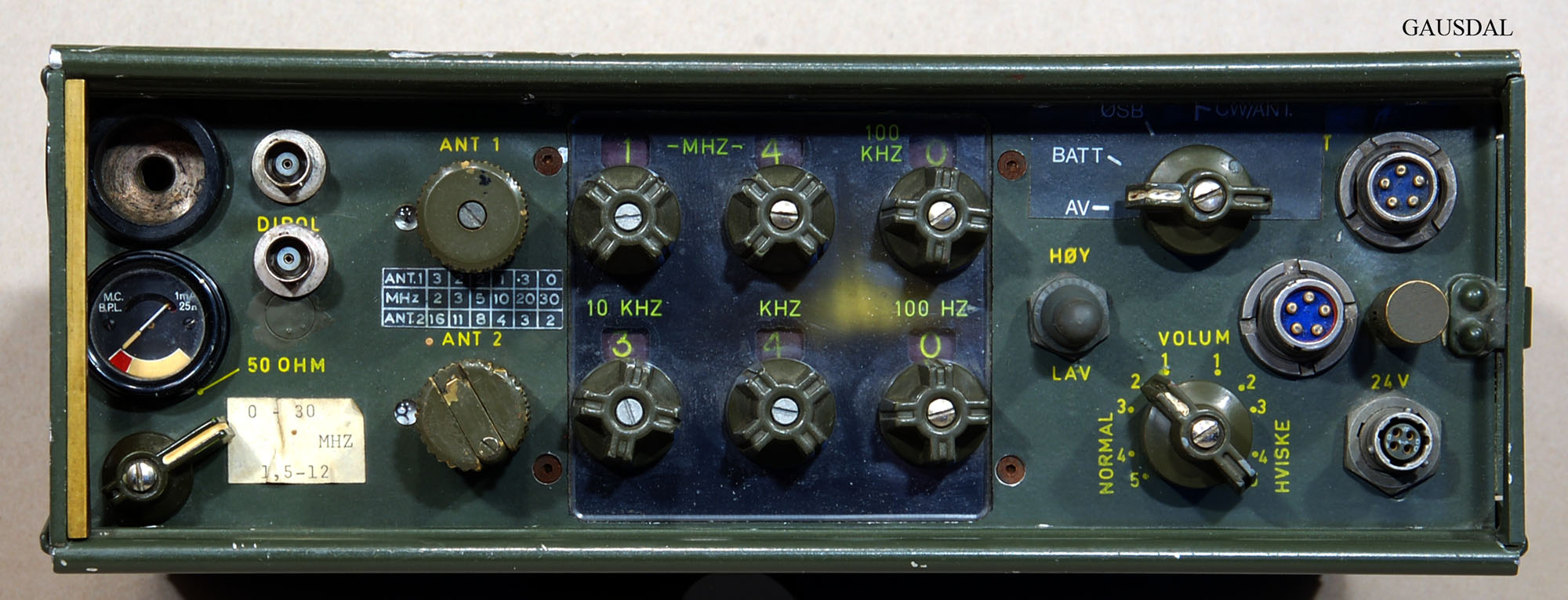

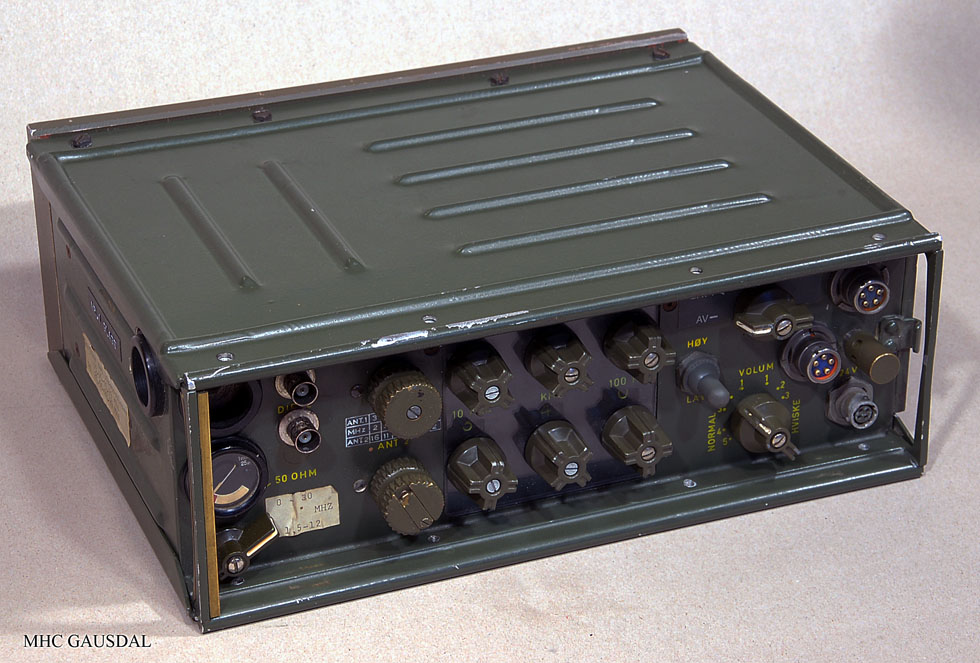

This is the first prototype.





7

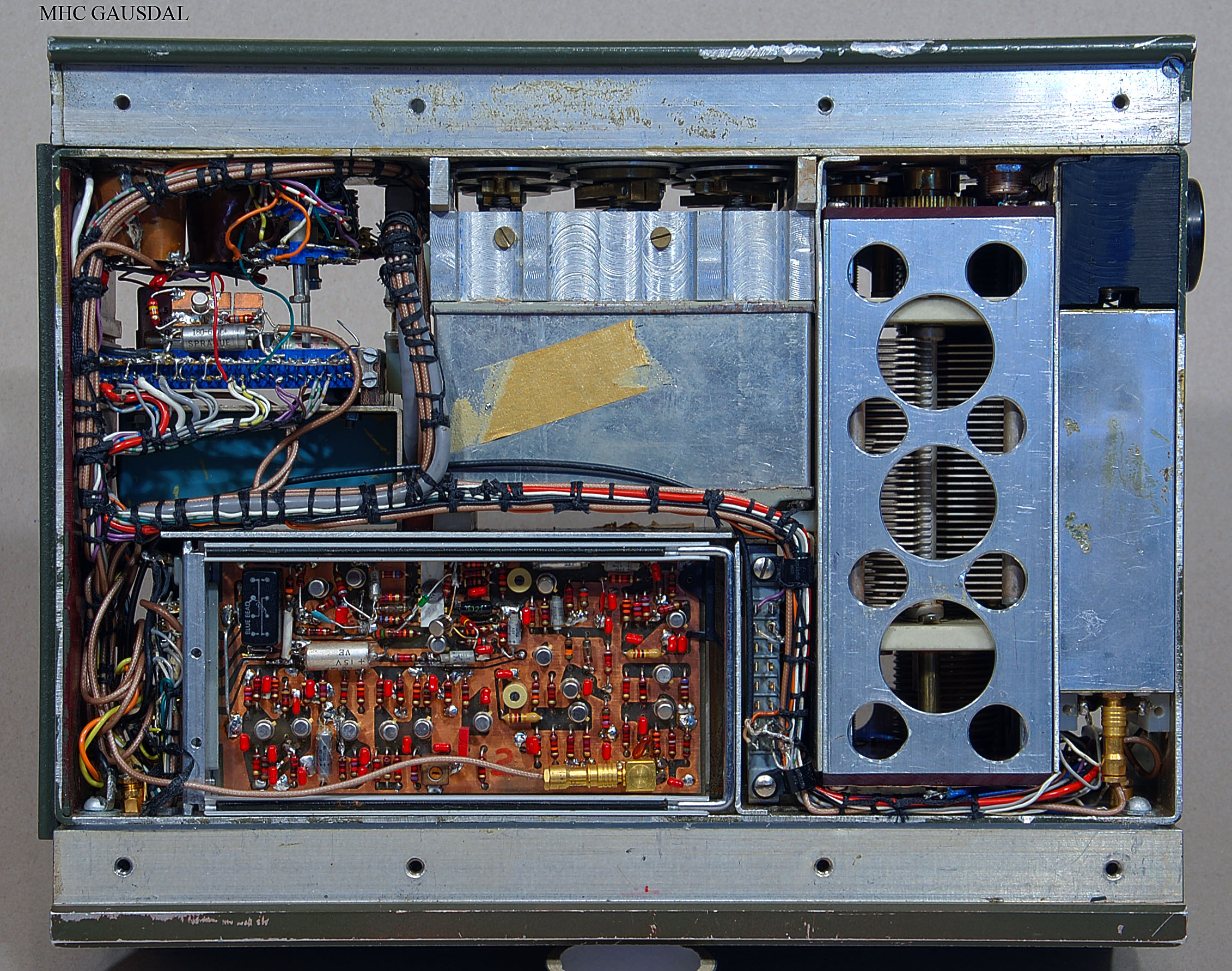

The first prototype.




The first prototype.




The first prototype.

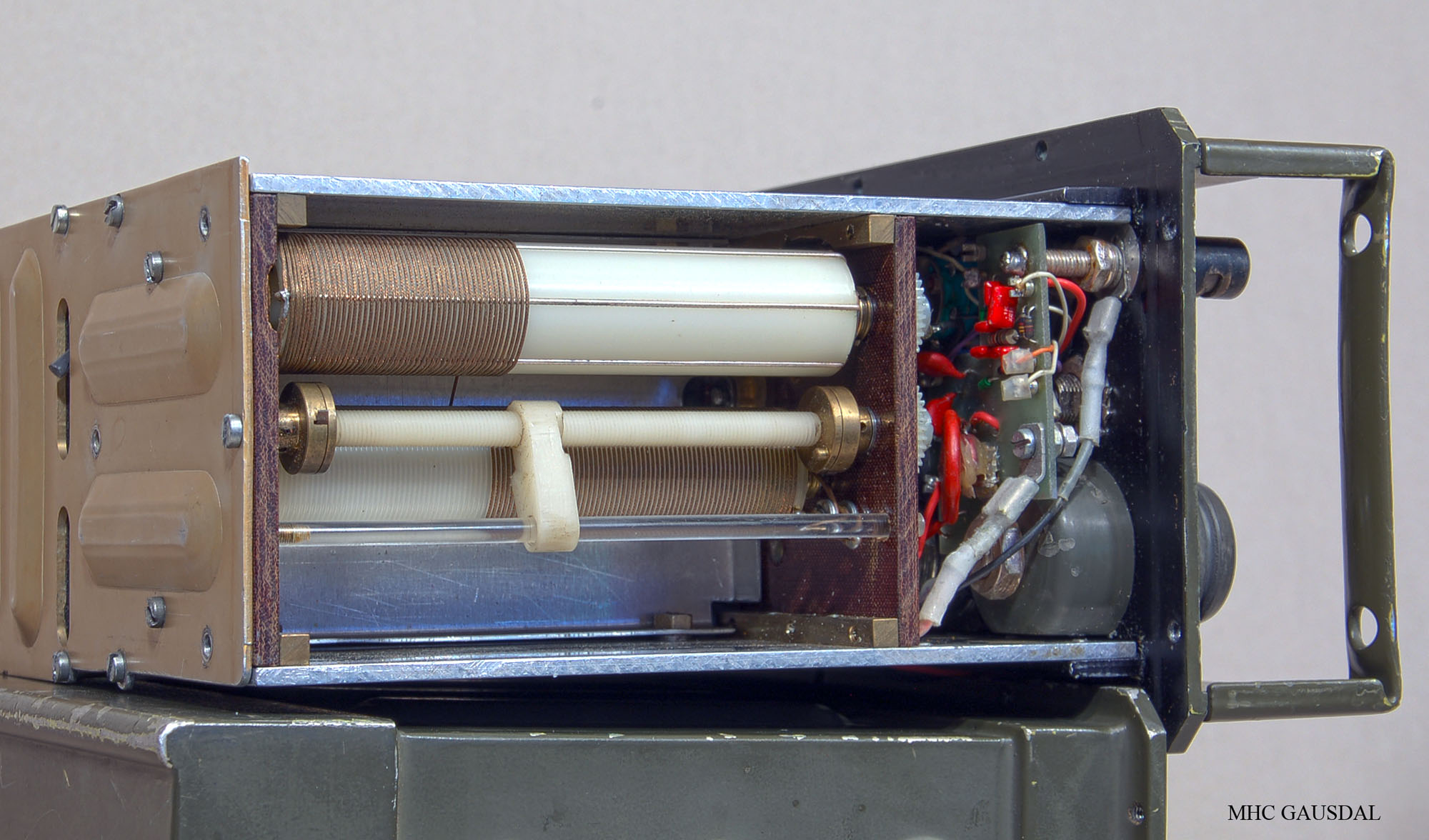

Antenna Tuner with a variable inductor and a large capacitor.




The first prototype.



SECOND PROTOTYPE

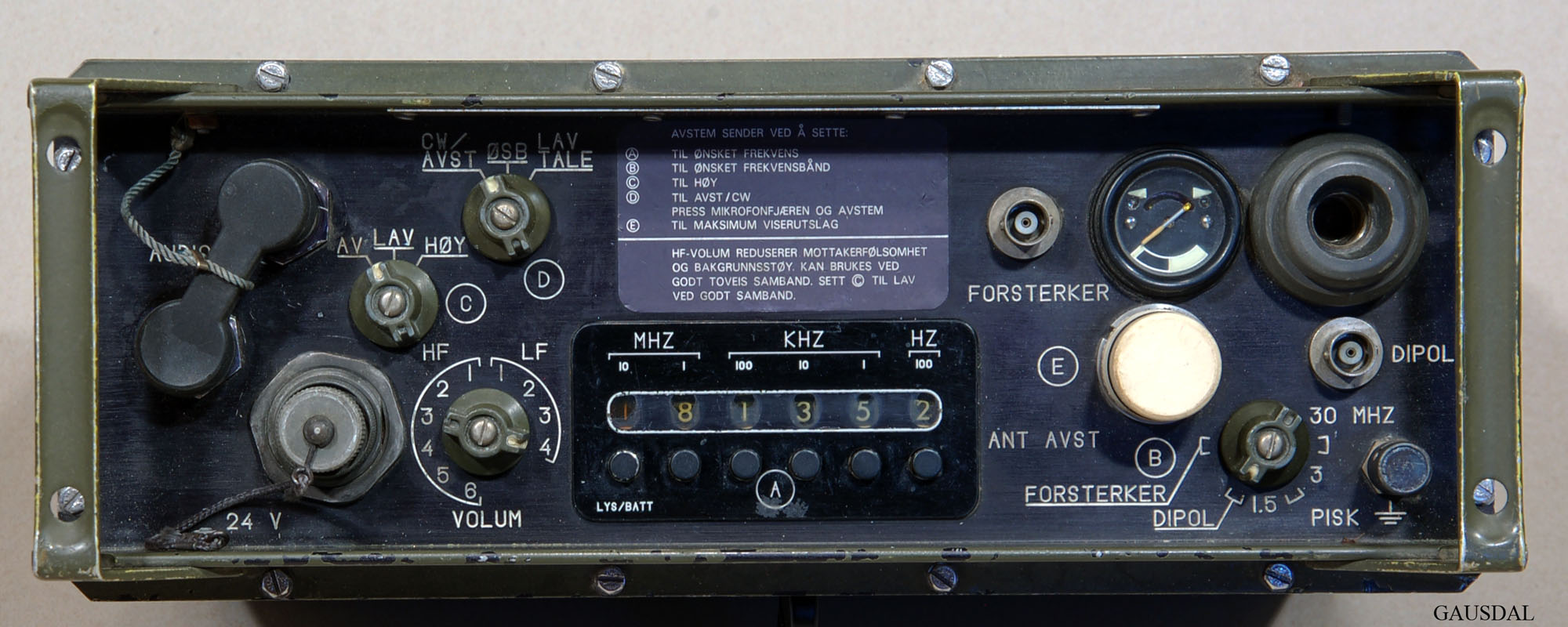

This looks more like the final versionen.




8

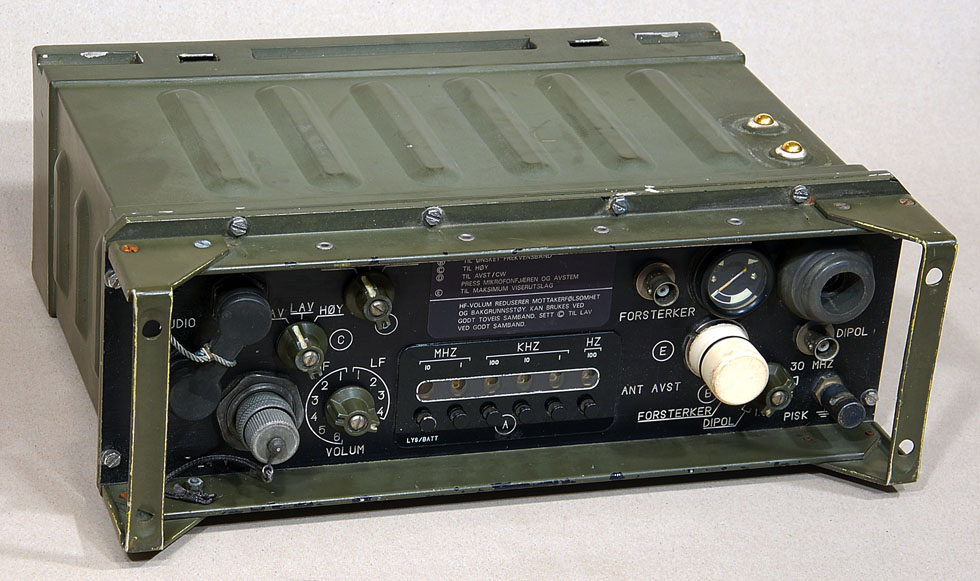

Prototype number 2.

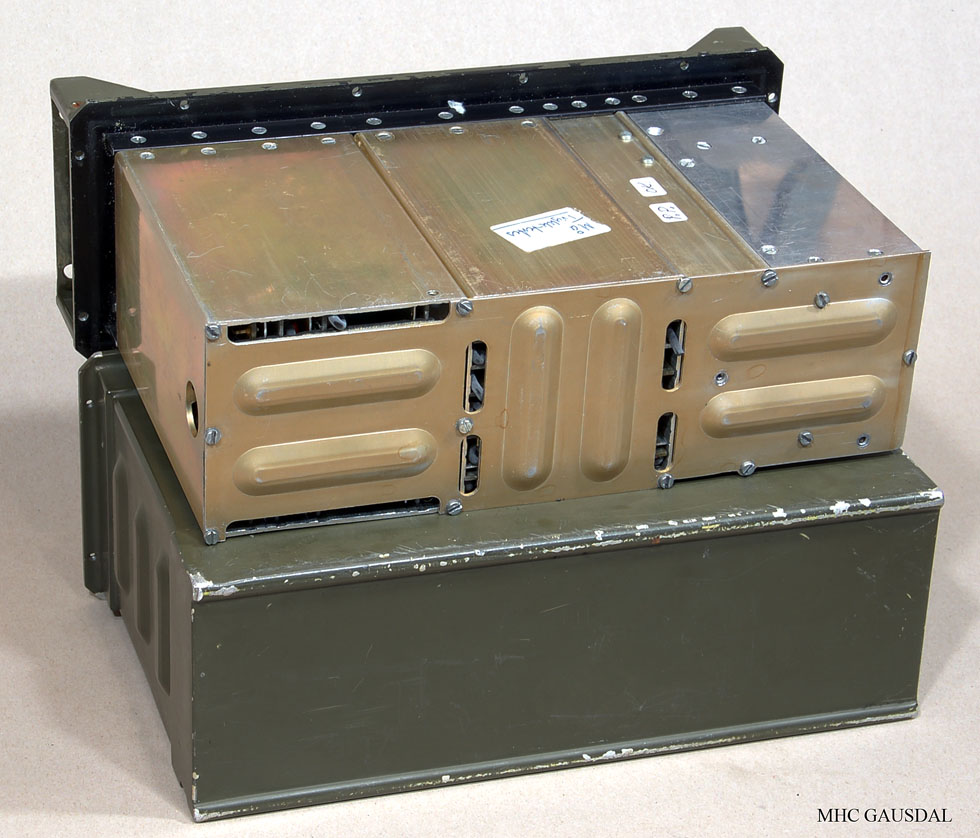

Prototype number 2.

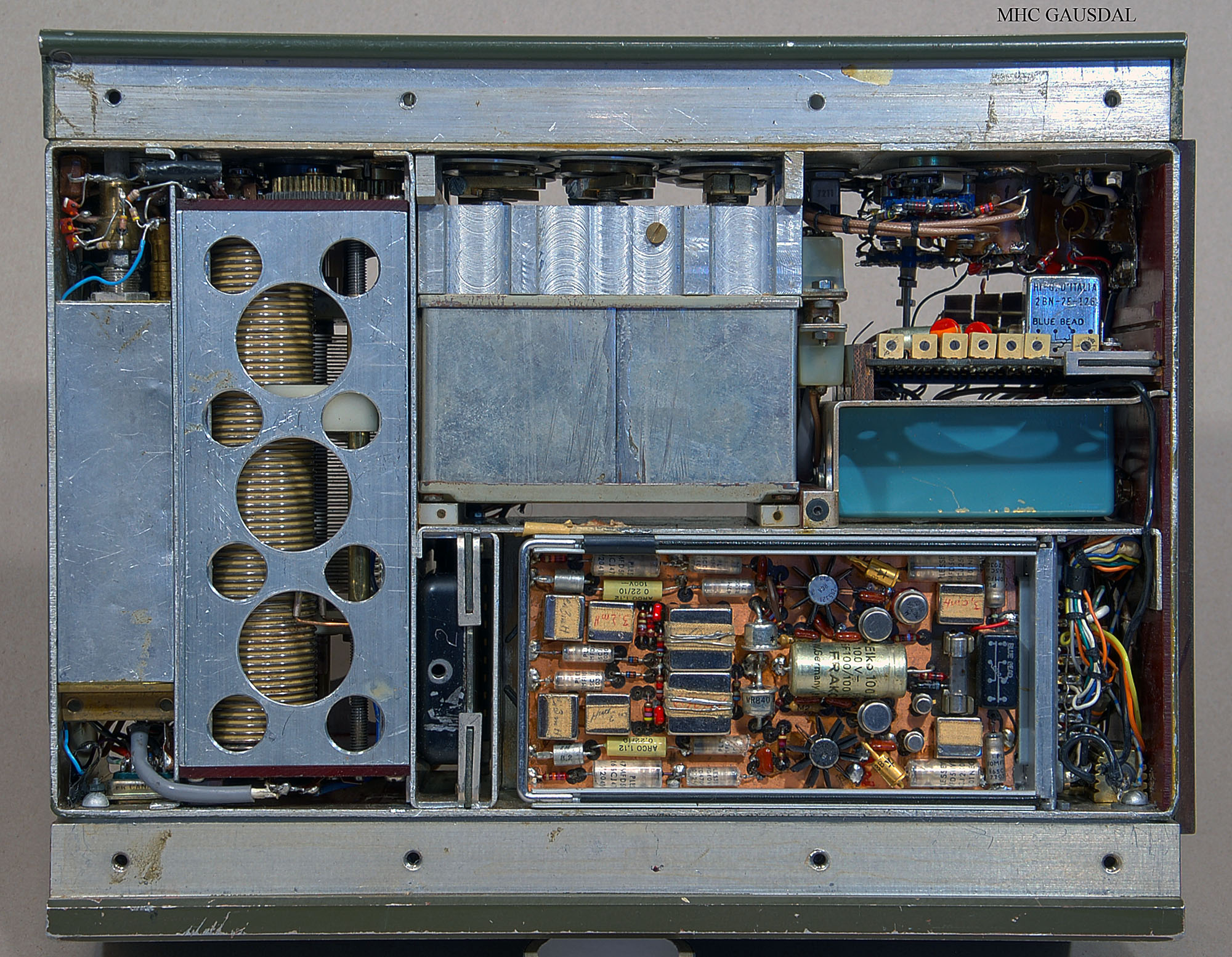

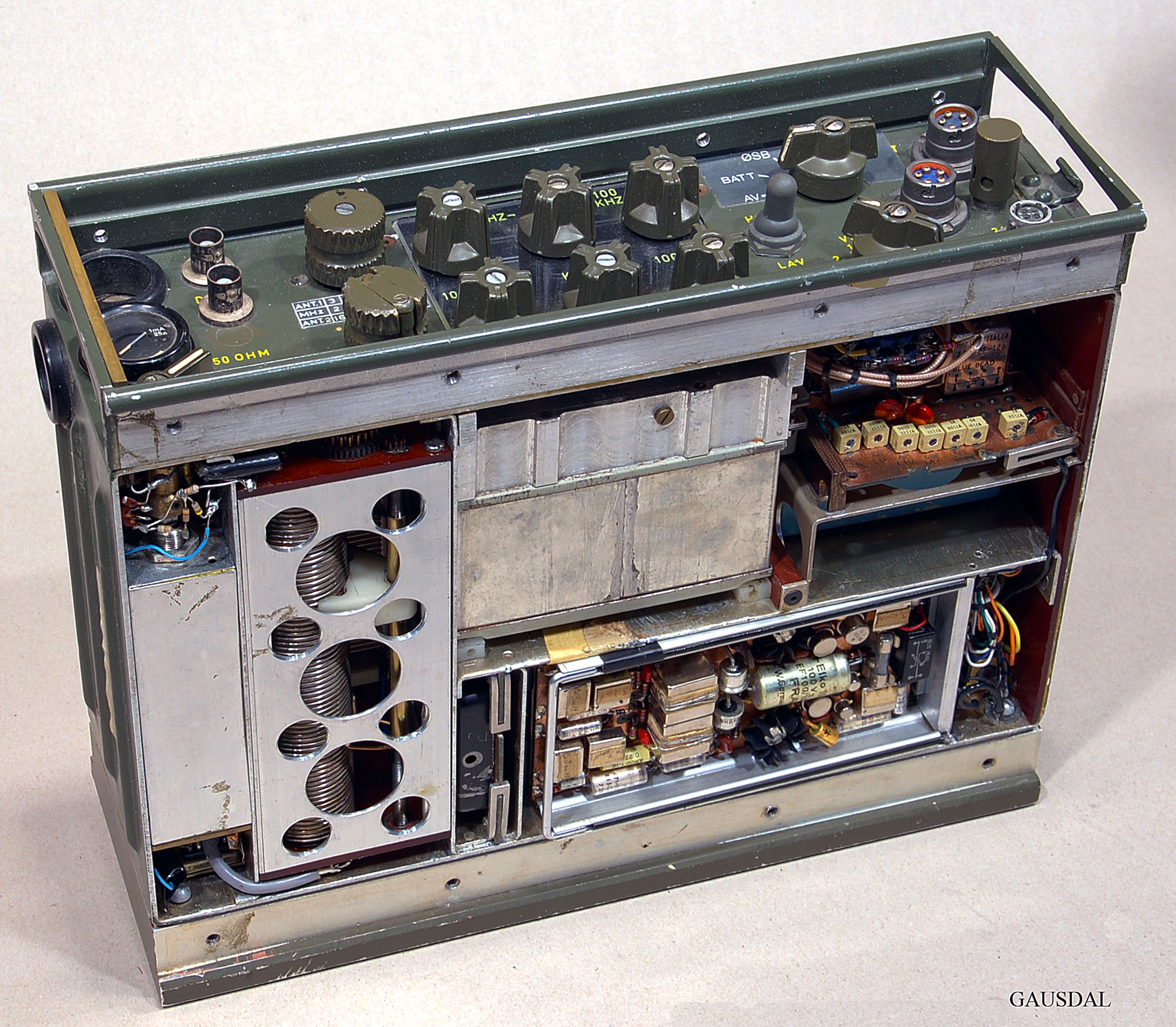

A new antenna tuner designed. Two coils where one can spool inn windings in the coil.

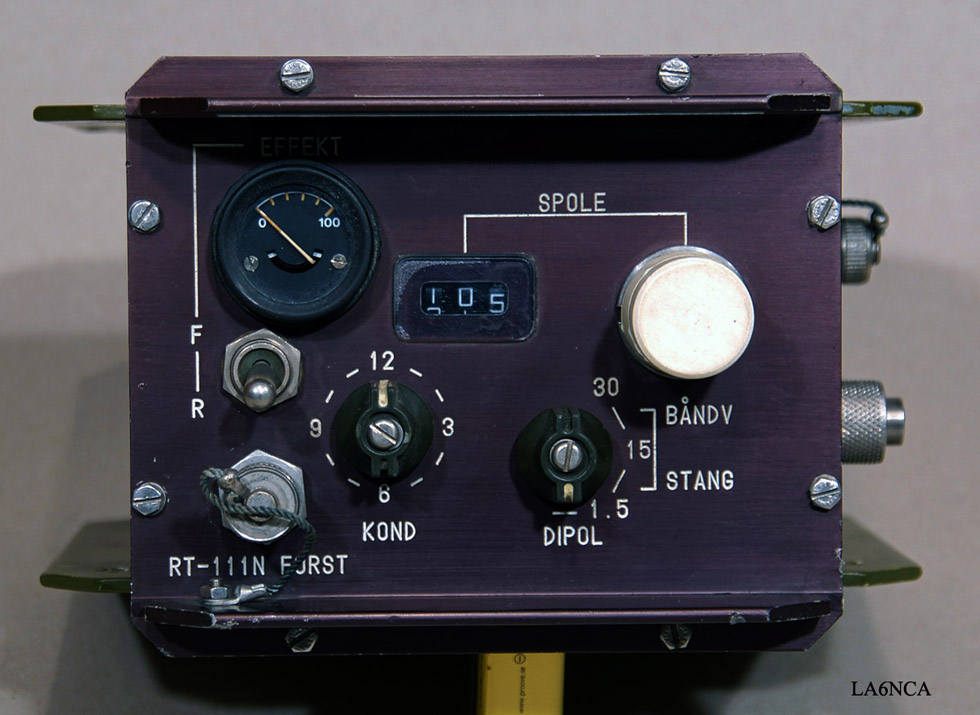

ANTENNA TUNER

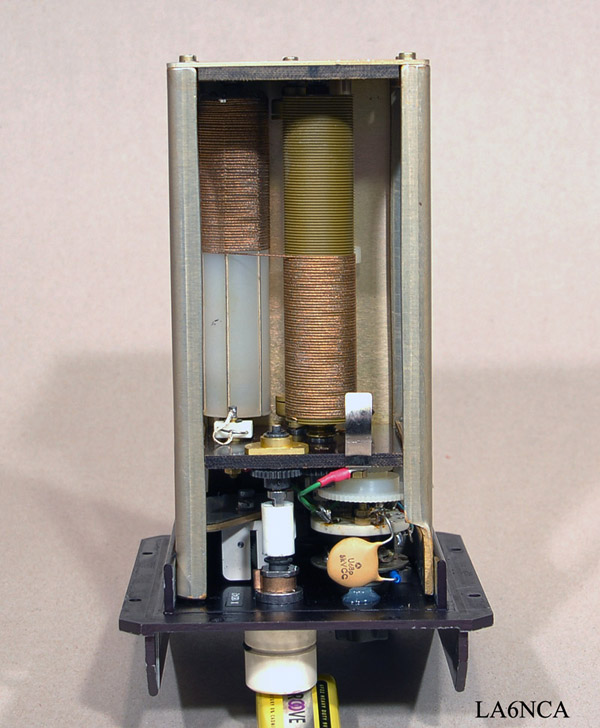

Here we see clearly the two coils. The left is the active coil.
