YAGI ANTENNA 145 MHz

Construction project in LA3L, Larvik group of NRRL.
The antenna is designed by DK7ZB.
4 elements, 6 dBd Gain, 50 ohms.






Element diameter is 10 mm

  REFLECTOR DIPOLE DIRECTOR 1 DIRECTOR 2
LENGTH 1030 mm 1030 mm 944 mm 864 mm
POSITION 0 mm 250 mm 345 mm 755 mm


Number Description Item # Price in NOK
2 10 mm al. tube Eidolon 50705 76
1 20 mm al. bom Eidolon 50763 33
4 Element Holder Eidolon 51300 56
1 UHF Connector Eidolon 51501 13

  Stainless steel screw   20


1 Plastic box Clas Ohlson, 36-2313 24.50
0.5m RG58 koax



http://www.eidolon.no/

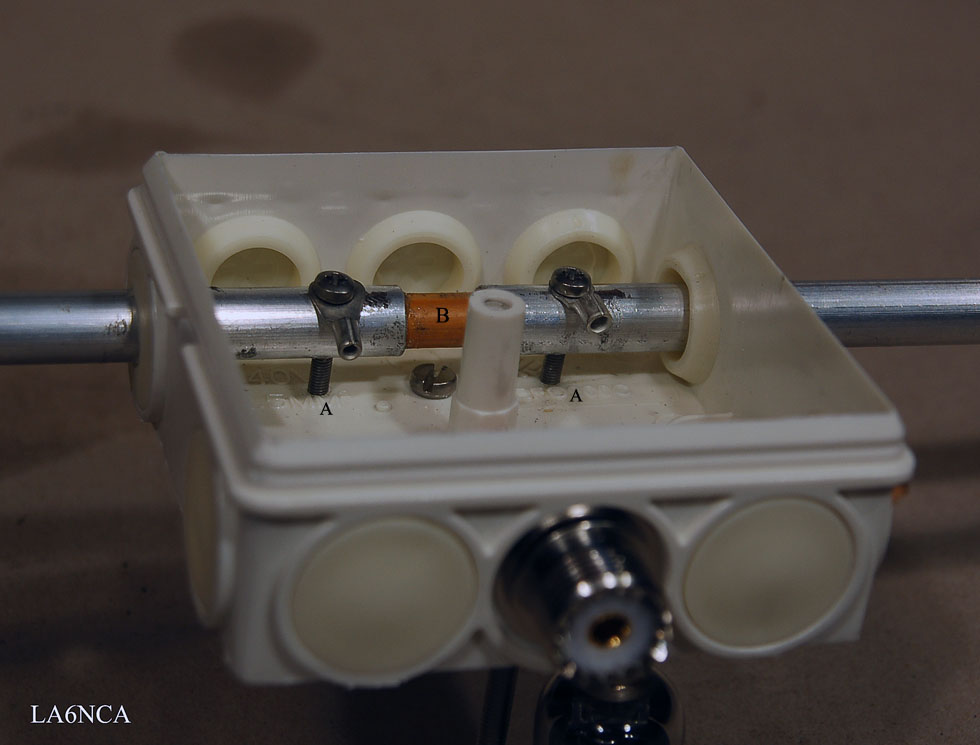

Plastic box from Clas Ohlson
A = Stainless steel screw which is attached to the dipole and the plastic box.
B = 8mm fiberglass rod that holds dipole together.

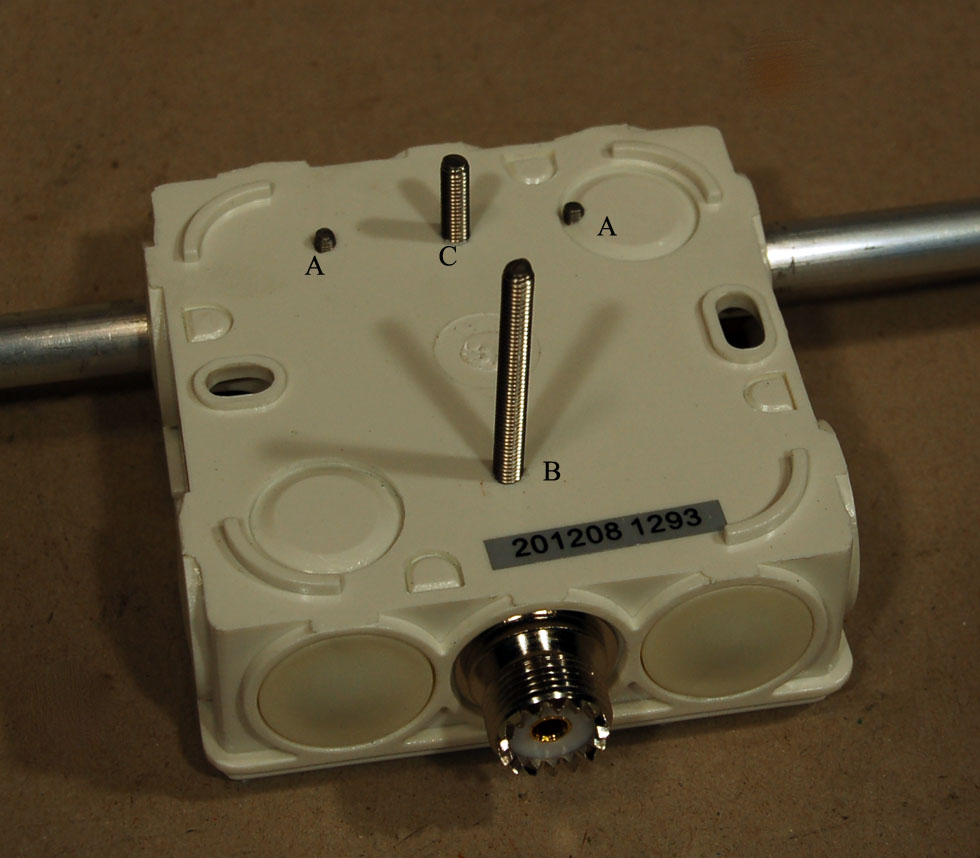

The bottom of the box.
A = Stainless steel screw which is attached to the dipole and the plastic box.
B = Stainless steel screw that secures the box to the boom. This screw is connected to GND on UHF connector.
C = Stainless steel screw which holds the box in position on the boom.

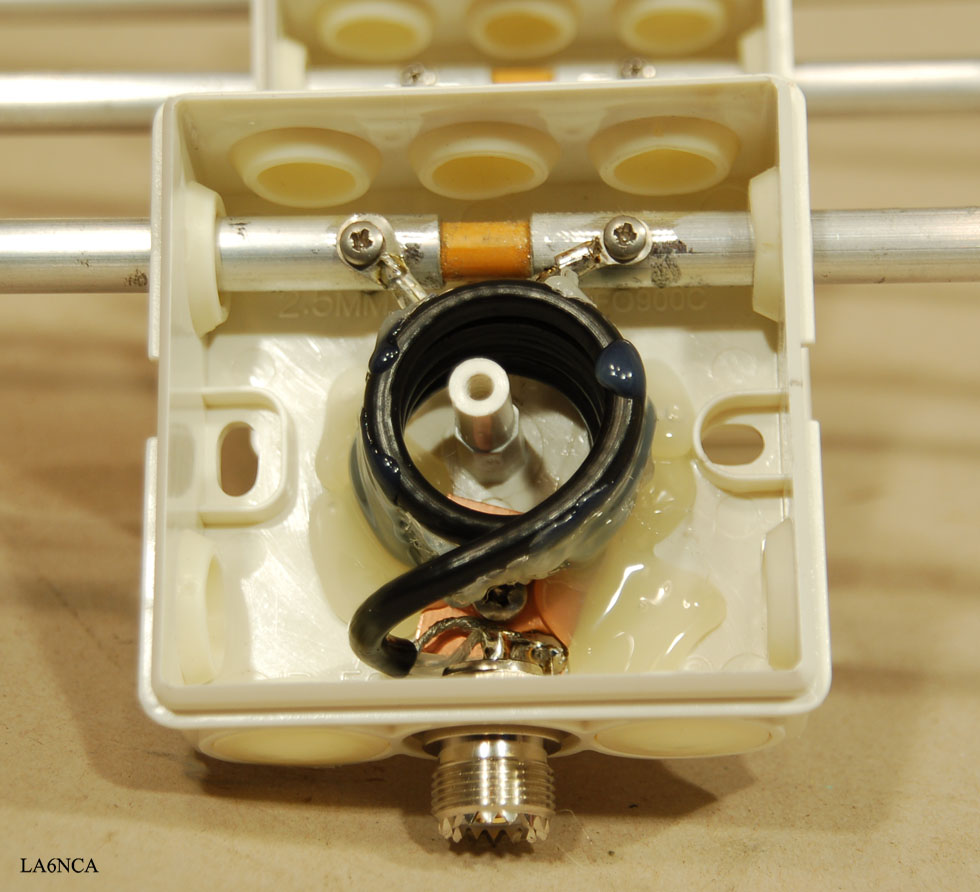

The balanced dipole is connected to the connector via a coil made of 0.5m RG58.

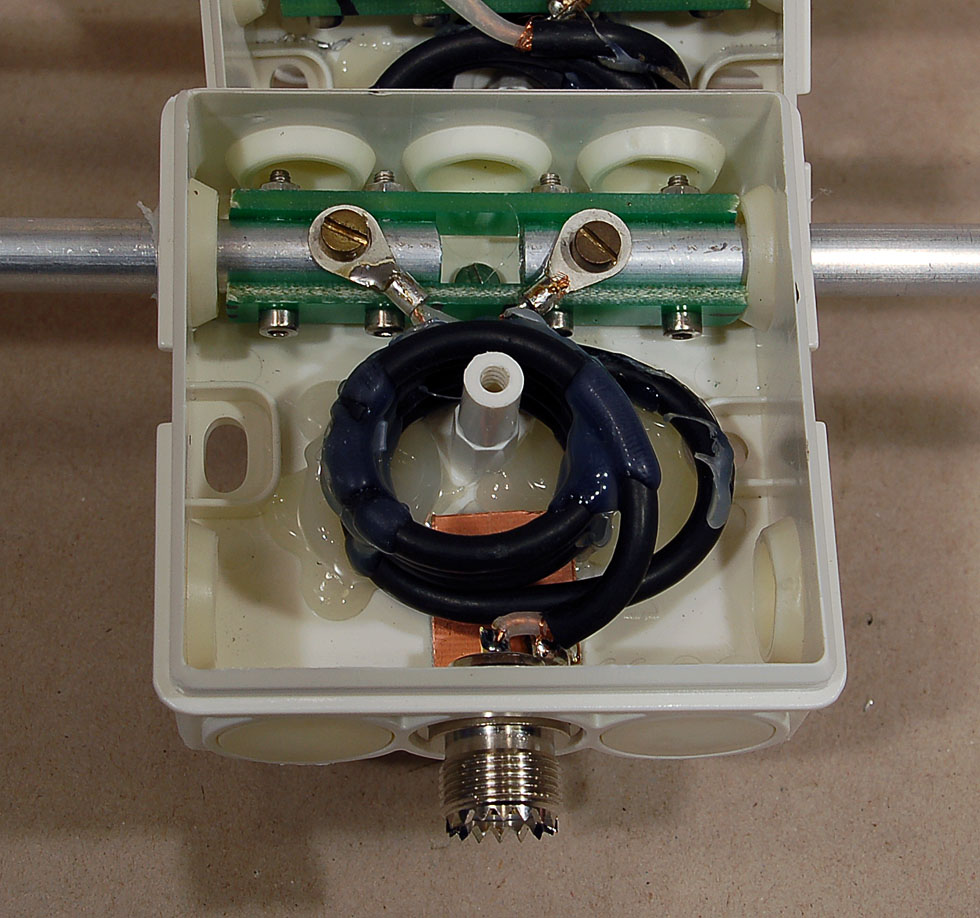

I use here PCB in the center of the dipole.

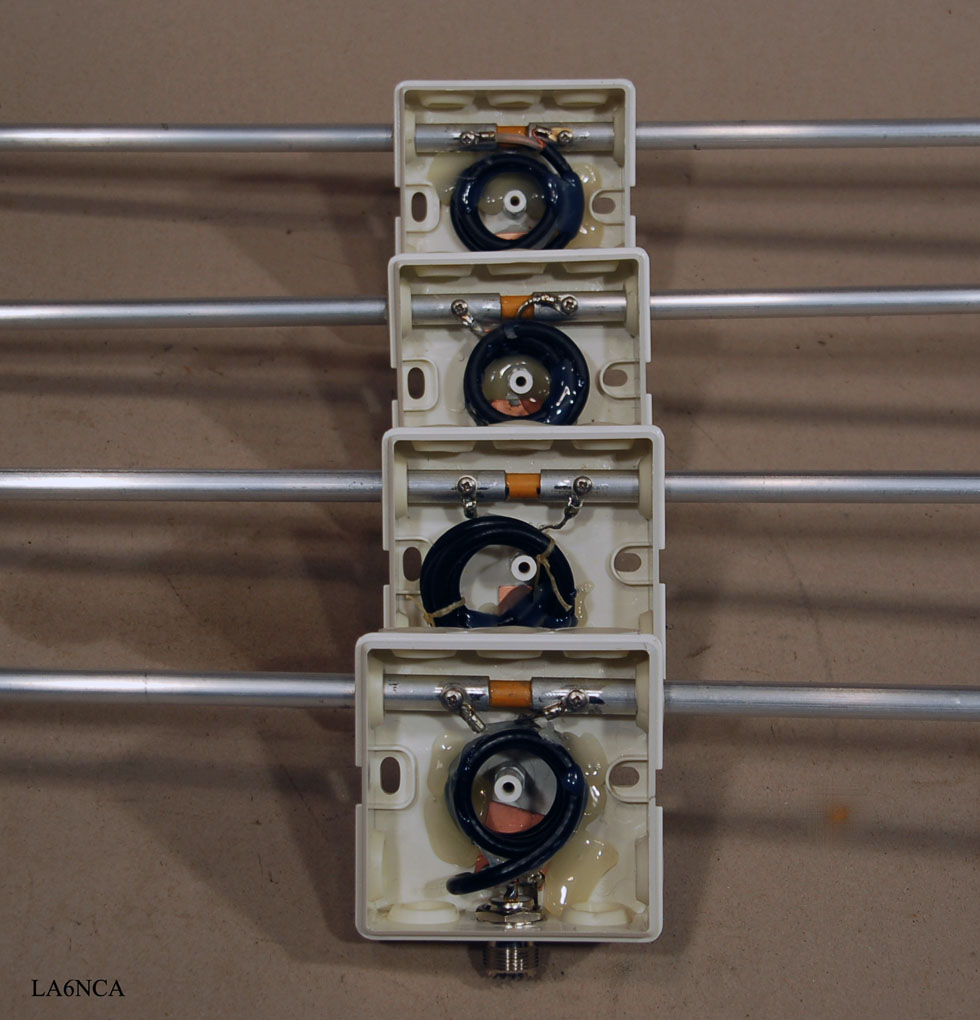

Four different coil’s. Some experiments must be done before I am satisfied.

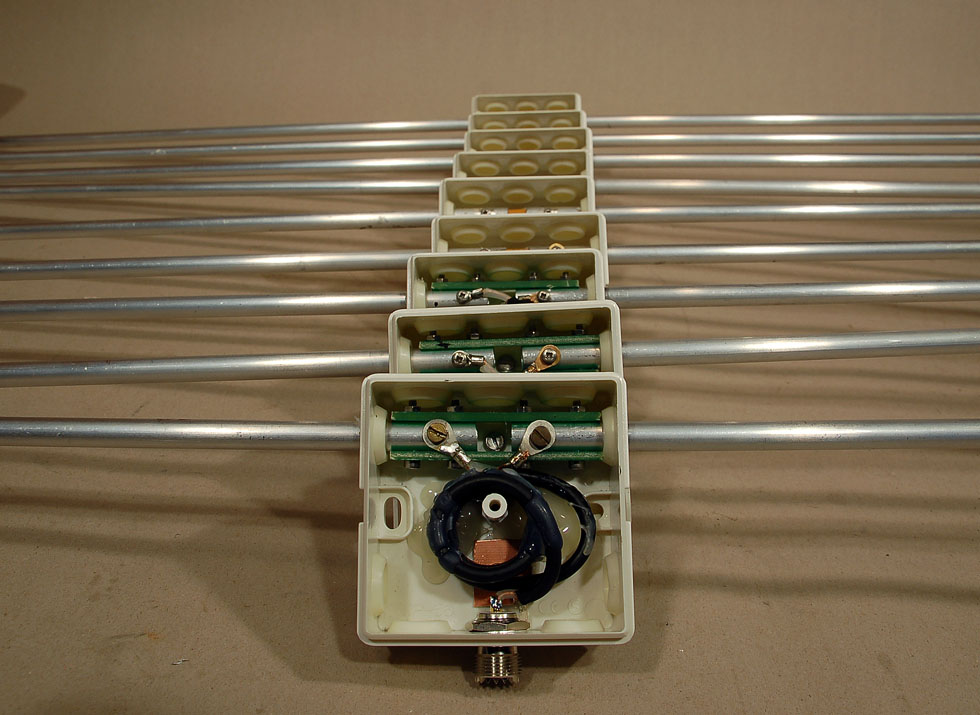

Mass production of dipoles.




Cutting antenna elements




Drilling holes in the Elements





The antenna are assembled.




The first antenna is ready for testing.

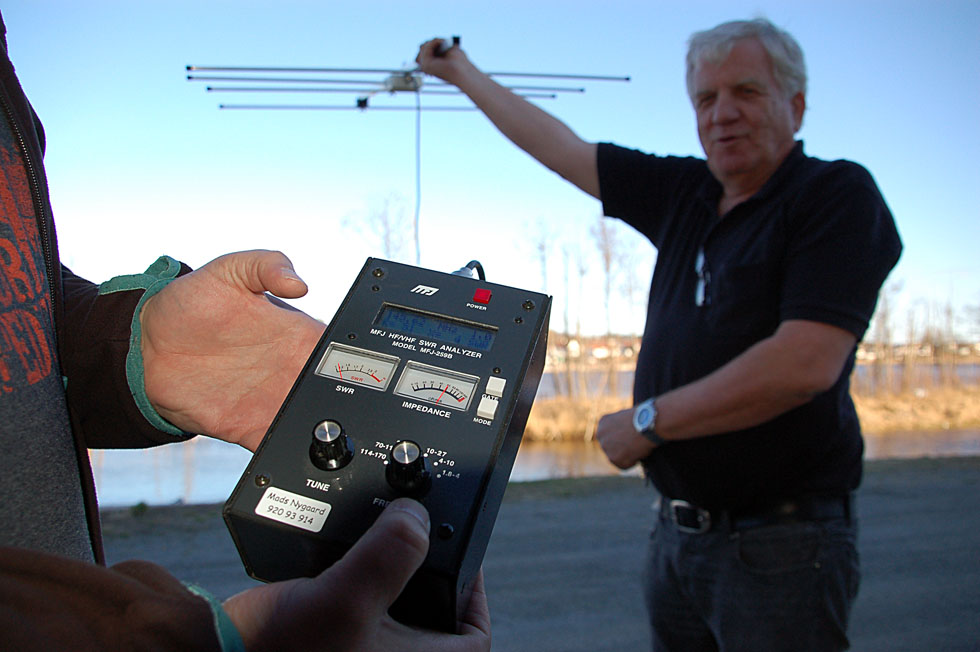

Yes, the antenna works very well. SWR 1.0
