Fug10 POWER





This is a power specifically designed for the German transmitters and receivers in Fug10.
Transmitter S10K/S10L and receiver E10K/E10L.
Input voltage is 12VDC.
Output voltages are 12VDC, 210VDC, 210VDC and 800VDC.

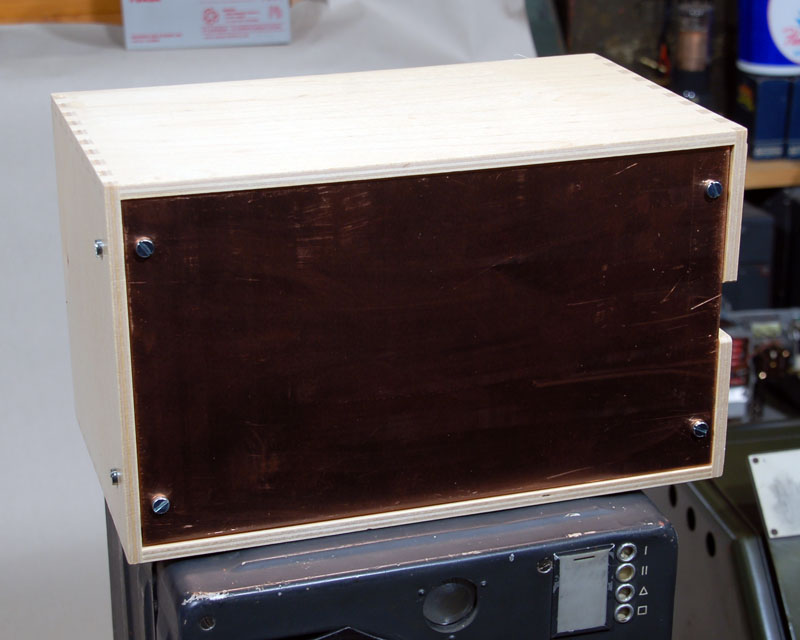

I use a cheap box from IKEA in this design.

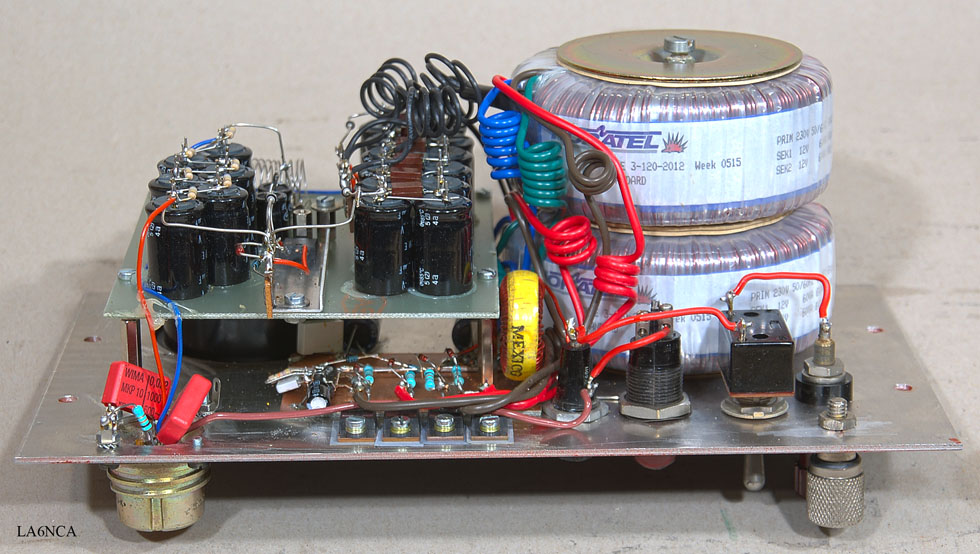

Has a front plate of copper for optimal cooling.

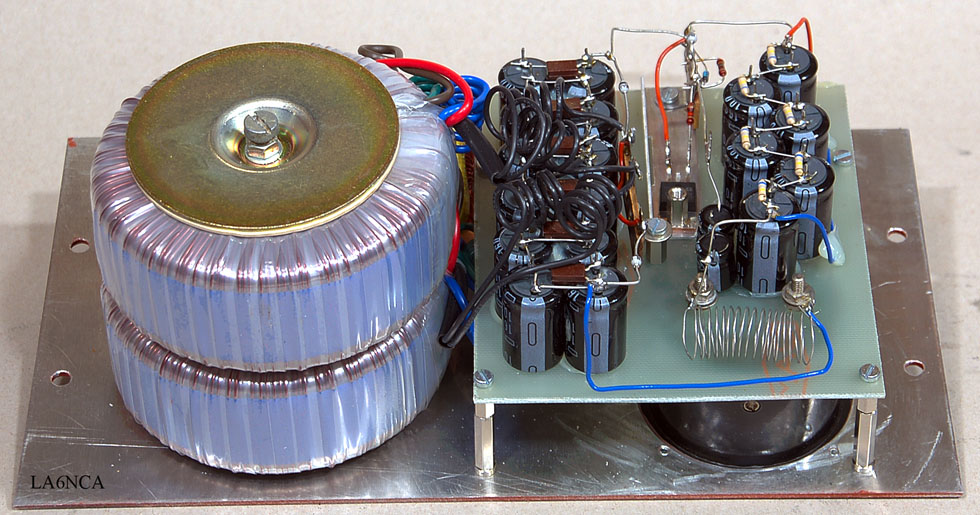

Here are some of the components to be on the front plate.


POWER FOR 100WS




This Power is also made in an IKEA box.
